Family Cut material not showing in section cut

5 ANTWORTEN 5
GELÖST
Antworten
Nachricht 1 von 6
sascari
2164 Aufrufe, 5 Antworten

Family Cut material not showing in section cut

My cut material is not showing for this one material when applied to a family object (the object is 'furniture' category). mstsc_ADf6N2Psia.png



I noticed that if I change the discipline from Architectural to Mechanical, I can control the pattern with the "Background" option (It's not clear what that is for and is not covered in documentation it seems). That doesn't help much though.

5 ANTWORTEN 5
Nachricht 2 von 6
RDAOU
als Antwort auf: sascari

@sascari

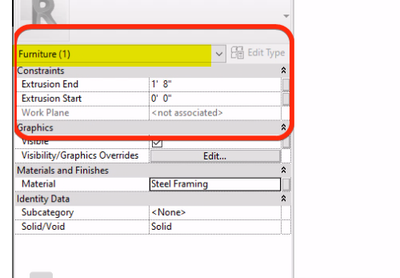

The family u are using is a Furniture Family you need to use a Cuttable family (Example: Generic Model)








For you second question: Discipline and the Material's Background Pattern are not related.. (when you switch discipline to Mechanical, non-mechanical families will be overridden and treated as underlay





YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 3 von 6
sascari
als Antwort auf: RDAOU

I had a feeling that was the case. Will it work with a nested generic model?

Nachricht 4 von 6
sascari
als Antwort auf: sascari

Here is a nested generic model with the same material applied. Still shows as solid gray instead of the diagonal lines. mstsc_ZqECejnhJG.png

Nachricht 5 von 6
RDAOU
als Antwort auf: sascari

@sascari



If you nest a generic model into a Furniture, it will behave like a furniture...Unless you make the nested generic model family Shared then it will be cuttable in the project









YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 6 von 6
sascari
als Antwort auf: sascari

Amazing. Thanks @RDAOU you the MVP
