Families on a diagonal wall and elevations problem

4 ANTWORTEN 4
GELÖST
Antworten
Nachricht 1 von 5
Anonymous
512 Aufrufe, 4 Antworten

Families on a diagonal wall and elevations problem

Hey all,

I have a diagonal wall and a family of countertop that follows it.

It creates a big problem with my elevations because it shows the entire family and doesn’t cut it on the place where my elevation and the counter top meet...
this is not right... it looks like a big awful misleading mistake on my behalf...

any tips/tricks on how to solve this?
it’s annoying.

thank you in advance

4 ANTWORTEN 4
Nachricht 2 von 5
alan_eu
als Antwort auf: Anonymous

You should create a new face-based family instead of wall based. Doing this, the family will follow the wall instead being vertical.

Alan Araújo EESignature
Bee1ColabInstagram Alan Araújo RevitBee1ColabGrupo Whatsapp


Usuários do Autodesk Community:
  • Se a resposta resolveu o seu problema, clique em Aceitar como Solução! isso ajuda os outros usuários a encontrar rapidamente uma resposta e Curta se gostou :leicht_lächelndes_Gesicht:
  • Manda um alô nas minhas redes sociais com +600 vídeos de de Revit/BIM, Templates e conteúdos semanais! Gratuitos! :leicht_lächelndes_Gesicht:
Nachricht 3 von 5
Anonymous
als Antwort auf: alan_eu

Thank you for your reply.
But That’s not my problem.. the family is placed correctly. The problem is that in an elevation view it looks like if my elevation doesn’t cut the family...

I’m attaching an image for a better visual of my problem

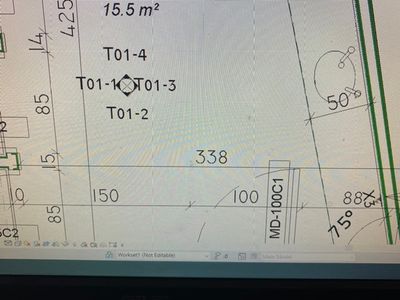

the first one is plan view

the second one is the elevation of t01-4



Nachricht 4 von 5
alan_eu
als Antwort auf: Anonymous

Got it!



Some kind of families doesn´t cut on sections... You could try to edit your family and change the family type to a cuttable one ( use Casework family type for testing purposes). You can find the button to change it on the upper left icon with a yellow folder icon...



I know, that´s not the best scenario, but give it a try!



These families are non-cuttable and are always shown in projection in views.

Detail Items
Electrical Equipment
Electrical Fixtures
Entourage
Furniture
Furniture Systems
Lighting Fixtures
Mechanical Equipment
Parking
Planting
Plumbing Fixtures
Specialty Equipment

Alan Araújo EESignature
Bee1ColabInstagram Alan Araújo RevitBee1ColabGrupo Whatsapp


Usuários do Autodesk Community:
  • Se a resposta resolveu o seu problema, clique em Aceitar como Solução! isso ajuda os outros usuários a encontrar rapidamente uma resposta e Curta se gostou :leicht_lächelndes_Gesicht:
  • Manda um alô nas minhas redes sociais com +600 vídeos de de Revit/BIM, Templates e conteúdos semanais! Gratuitos! :leicht_lächelndes_Gesicht:
Nachricht 5 von 5
Anonymous
als Antwort auf: alan_eu

Ok thank you!!

didn’t know that you can’t cut some families.. good to know (:

I ended up deleting the family in my elevations and drew the counter top by sketch.
sometimes you can’t replace the good old fashioned way.
