Extra lines on my 3d model protruding from the interior to exterior! Not sure what to do!!

9 ANTWORTEN 9
GELÖST
Antworten
Nachricht 1 von 10
Anonymous
969 Aufrufe, 9 Antworten

Extra lines on my 3d model protruding from the interior to exterior! Not sure what to do!!

Hello,
I have been having this issue since last night, I had done the following so far: Updated my Graphics Card Driver, updated my laptop, closed and opened the revit file multiple times, checked the properties.. nothing seems to work!

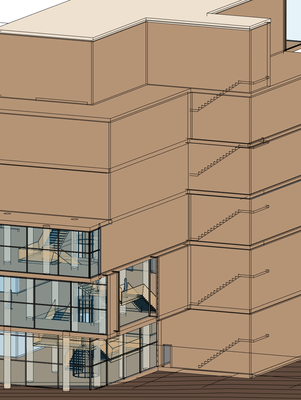

The model seems to have some doubled lines along the walls and floors and its showing some elements like stairs through the exterior façade. I attached an image for you. Anything helpful will be appreciated. Thank u!

Screenshot 2021-03-09 161312.png

9 ANTWORTEN 9
Nachricht 2 von 10
ToanDN
als Antwort auf: Anonymous

Do the lines appear if you zoom closer?
Nachricht 3 von 10
Anonymous
als Antwort auf: Anonymous

The lines appear whether I'm close or further away from the model... I'm worried its an issue because I redrew my floors so that they don't go all the way to the exterior of the wall. Any ideas?

Nachricht 4 von 10
Anonymous
als Antwort auf: ToanDN

The lines appear whether I'm close or further away from the model... I'm worried its an issue because I redrew my floors so that they don't go all the way to the exterior of the wall. It seems like sometimes when I do certain things or zoom in and zoom out, additional lines start showing as well. Not sure.  Any ideas?

Nachricht 5 von 10
Anonymous
als Antwort auf: Anonymous

Screenshot 2021-03-09 165827.png

 its looking like this now :enttäuschtes_Gesicht:

Nachricht 6 von 10
barthbradley
als Antwort auf: Anonymous

Delete your 3D view and create another one.

Nachricht 7 von 10
syman2000
als Antwort auf: Anonymous

Check your eye and target value. Larger value means your view will display as wireframe. To fix it use the viewcube and click on the isometric to reset the view back to normal.




Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 8 von 10
Anonymous
als Antwort auf: barthbradley

Thank you! That worked.

Nachricht 9 von 10
Anonymous
als Antwort auf: syman2000

That was exactly it. When I deleted the 3d view and created a new one, the numbers were adjusted to something smaller.

Nachricht 10 von 10
barthbradley
als Antwort auf: Anonymous


@Anonymous wrote:

Thank you! That worked.




Your welcome, @Anonymous.



FWIW, here's an AKN Article that talks about it.
