Extended Pitch - Roof Modelling Question

Sorry if this is a stupid question, but: what’s the best practice for making this shape of roof ?

Screenshot 2022-01-17 at 10.19.02.png

I thought perhaps it’s almost like two gabled roofs joined , but that doesn’t create the little triangle area hatched at the top here , and just leaves a mini gable popping out of the top of the ridge .

Screenshot 2022-01-17 at 10.22.45.png

Screenshot 2022-01-17 at 10.22.03.png

Screenshot 2022-01-17 at 10.19.34.png



I also thought that perhaps you could use the majority of the hipped roof and a gabled extra part added and joined. (The unneeded parts removed using a vertical cut). But the wall below then doesn’t seem to attach correctly. (It’ll attach to one, but not both roofs…)



I’m a bit stumped… Any ideas how to best go about this? It’s such a small thing but super annoying.

4 ANTWORTEN 4
Nachricht 2 von 5
syman2000
als Antwort auf: j.henderson86X3T

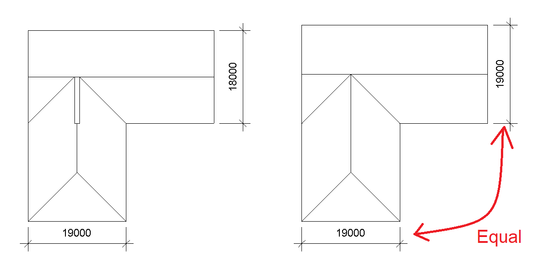

One thing you need to realized is to make the pitch intersect and have the same roof slope, you have to make the width of the roof the same for both pitches.




If you don't want this, then you have to adjust one of the roof pitch to be lower than another.








Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 3 von 5
ToanDN
als Antwort auf: j.henderson86X3T

Create a small roof (the red triangle in your picture), match the adjacent slope, move it to the correct elevation, and join geometry to other roofs.

Nachricht 4 von 5
barthbradley
als Antwort auf: j.henderson86X3T

Model all the roofs together in one Sketch.




Roof 117.png

Or Join Roof the other way around.



Join Roof 117-1.pngJoin Roof 117-2.png

Nachricht 5 von 5
















I've inserted a small edge of 0.8 mm (the smallest segment accepted by Revit ) It so small that in real life doesn't matter...
