Extend grips dont stretch beam

5 ANTWORTEN 5
Antworten
Nachricht 1 von 6
mv2JHHXL
352 Aufrufe, 5 Antworten

Extend grips dont stretch beam

Hi



1|  I made this framing family, with the normal grips I can stretch the beam, but when I stretch with the grip handles it doesn't extend/stretch. I locked the ends of the beam to the left and right reference planes.



2|  Also, when my beam is shorter than what I initially drew, it gives the beam a weird dent.

I drew this beam with different sections and connected it with extrusion blend to connect the shapes. The angle of the top line should always remain the same: 5cm/m.



How can I fix the family?





5 ANTWORTEN 5
Nachricht 3 von 6
ToanDN
als Antwort auf: mv2JHHXL

Constraints are not set correctly in the family.  Share it here, or open an OOTB bean and reverse engineer how it is built.

Nachricht 4 von 6
mv2JHHXL
als Antwort auf: ToanDN

I'll share it. I'd like to learn what I'm doing wrong ;p.

Im such a noob ahahah.



Thanks is advance.

Nachricht 5 von 6
barthbradley
als Antwort auf: mv2JHHXL

Here: see "Family3.rfa" in the attached "Project MARV.rvt".



Beam 321-A.pngBeam 321-B.png



Nachricht 6 von 6
barthbradley
als Antwort auf: mv2JHHXL

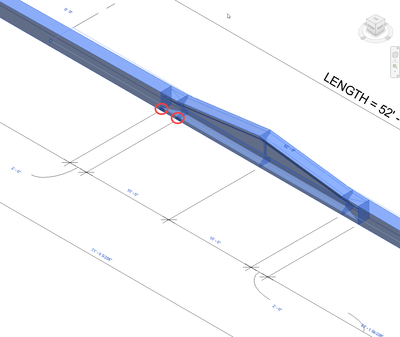

Note these additional "bonus" grips as well:



Beam 321-C.pngBeam 321-D.png

Happy Reviteering.





...one more screenshot to aid you:



Beam 321-F.png
