Exporting to DWG excluding hidden lines

I've been trying to export a perspective view to a DWG but I cannot figure out how to configure the settings such that the hidden lines (for example the window frame within the wall) does not show up. Whenever I try to export to DWG the perspective is very messy because it includes all of these hidden lines. I have the transparency on the view set to 0, but what else can I do?

Beschriftungen (3)
3 ANTWORTEN 3
Nachricht 2 von 4
ToanDN
als Antwort auf: jessies2JUUJ

- If you want 3D DWG then export normally and change the visual style to Hidden lines or whatever you line in AutoCAD.

- If you want to export a 2D DWG snapshot of a 3D view, then place the 3D view with Hidden lines visual style on a sheet and export the sheet to DWG.

Nachricht 3 von 4
jessies2JUUJ
als Antwort auf: ToanDN

I do want to export a 2D DWG snapshot, thank you

Nachricht 4 von 4
ToanDN
als Antwort auf: jessies2JUUJ


@jessies2JUUJ wrote:

I do want to export a 2D DWG snapshot, thank you


- Create a sheet

- Place the 3d view on sheet

- Export > CAD formats > DWG






- DO NOT check this box:

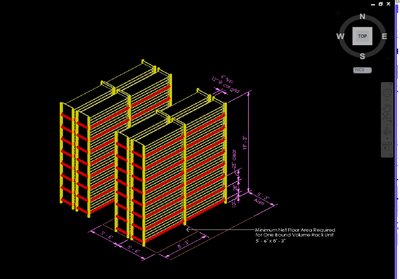

2D DWG
