Explode command missing for imported SAT file (Revit 2020)

12 ANTWORTEN 12
Antworten
Nachricht 1 von 13
alberto.cp
2307 Aufrufe, 12 Antworten

Explode command missing for imported SAT file (Revit 2020)

Hello guys,

Following a tutorial in the official Revit 2018 Guide, where an imported SAT File is to be exploded.



I did import the file through the Import CAD command, but when I select the imported geometry the explode command is absent (see the attached image).



Is anyone experiencing the same issue?

12 ANTWORTEN 12
Nachricht 2 von 13
ToanDN
als Antwort auf: alberto.cp

Explode only works on dwg, dxf. Not sat.
Nachricht 3 von 13
barthbradley
als Antwort auf: alberto.cp

Can you provide us with a link to the tutorial that you are following?  I'm curious to know what "official Revit guide" is tutoring you to "Explode" an SAT.  Not only can you not Explode an SAT in Revit, it is generally a bad idea to Explode DWGs in Revit.







Nachricht 4 von 13
alberto.cp
als Antwort auf: barthbradley

Dear barthbradley,



of course I can.



https://www.wiley.com/en-us/Mastering+Autodesk+Revit+2018-p-9781119386728

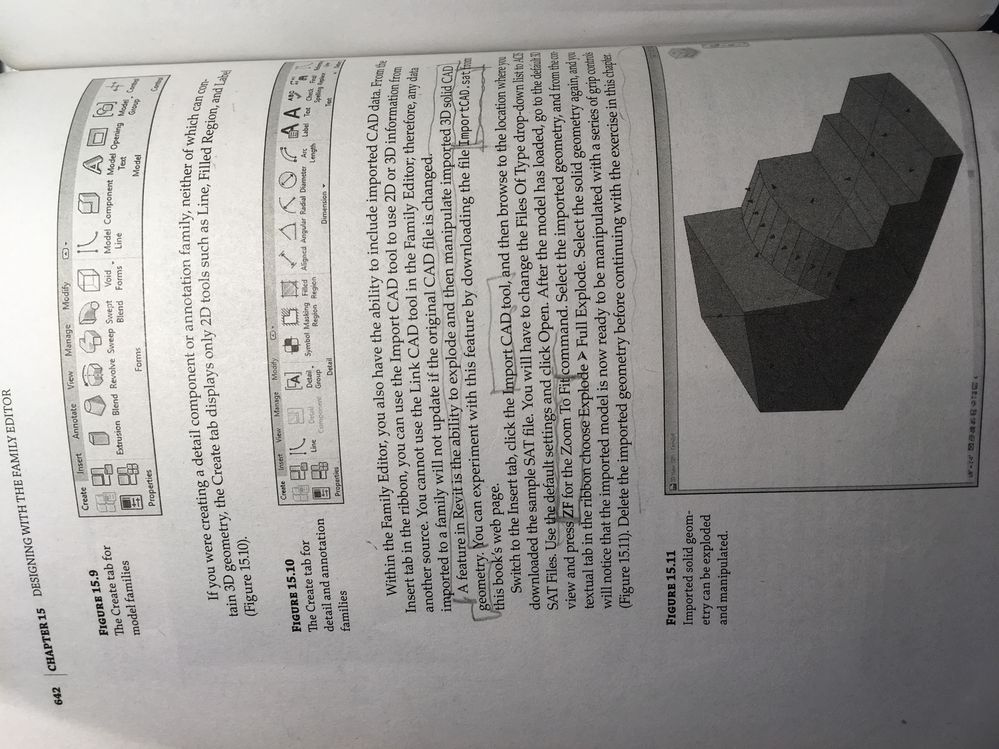

The tutorial I am referring to is at page 642 of chapter 15.



Photo 29-09-2019 18 08 07.jpg





Nachricht 5 von 13
barthbradley
als Antwort auf: alberto.cp

Odd.  Do they have an "ImportCAD.dwg" or maybe "ImportCADsat.dwg". You can explode a dwg into a free-form element.

Nachricht 6 von 13
ToanDN
als Antwort auf: alberto.cp

SATs may be explodable in earlier versions such as 2016. In the newer ones, they are imported in as freeform elements, not an imported elements so the option to explode is inapplicable. Anyhows, you don't need to export them. They can still be used to generate walls, roofs by faces, or curtain systems.
Nachricht 7 von 13
barthbradley
als Antwort auf: alberto.cp

Explode this one (attached).  Imported the SAT file into AutoCAD and saved.

Nachricht 8 von 13
Anonymous
als Antwort auf: ToanDN

Hello everyone.

I have the same problem. I have Revit 2020 student edition, tried to open a .SAT FILE (7.0) and Revit tells me it can't do that..

Nachricht 9 von 13
ToanDN
als Antwort auf: Anonymous

You cannot open a SAT file in revit. You need to import it.
Nachricht 10 von 13
Anonymous
als Antwort auf: ToanDN

please help.. Can't open a .SAT 7.0 file using REVIT 2020.. what can I do.?

Nachricht 11 von 13
ulasdeniz
als Antwort auf: alberto.cp

In old Revit versions You could explode the SAT files. I realised that just now.  I have had using Revit 2015 and it can be exploded in older versions.


Ulaş Deniz


Forumlarımızda çözülen sorularınızı "ÇÖZÜM OLARAK KABUL ET" ( "ACCEPT AS SOLUTION" ) seçimiyle işaretlemeyi lütfen unutmayın.
Beğendiğiniz mesajları lütfen "Övgü Puanı" (KUDO) ile ödüllendirin.
Youtube : https://www.youtube.com/channel/UCkJpVueGScmJvW1RIgqttSg

Nachricht 12 von 13
Radish_G
als Antwort auf: alberto.cp

To apply the material, I believe Autodesk should allow the user to explode the .sat file.

At the moment, "Object Styles" is the only way to add material. This is not an adaptable situation.

Regards
Radish G
Nachricht 13 von 13
troy_troy
als Antwort auf: Radish_G

Newer versions allow you to export (isolated) element as SAT then import SAT directly over existing. You then Create Parts and modify materials as necessary.



This is particularly useful for stairs where you want the material to have multiple orientations.



Edit: Unfortunately the Parts do not show their area in a parts schedule, even though they show volume.
