Energy Modelling Issues

2 ANTWORTEN 2
Antworten
Nachricht 1 von 3
Anonymous
285 Aufrufe, 2 Antworten

Energy Modelling Issues

Hi, I wonder if anyone can offer any help.  I've created a simple single storey building comprised of just the floor, external walls and the roof.  The wall cores extend up to the roof and the space generator created one space which is accurate for the internal of the building.



Despite this, the energy model appears to show lots of jagged edges etc.  Can anyone please point me to what I might be doing wrong?



Thanks.



3D View3D View



Energy ModelEnergy Model



2 ANTWORTEN 2
Nachricht 2 von 3
barthbradley
als Antwort auf: Anonymous

Let's see a screenshot of the Elevated Model in Heating and Cooling Loads.






Maybe you need to adjust the Space.














Nachricht 3 von 3
Anonymous
als Antwort auf: barthbradley

Hi,

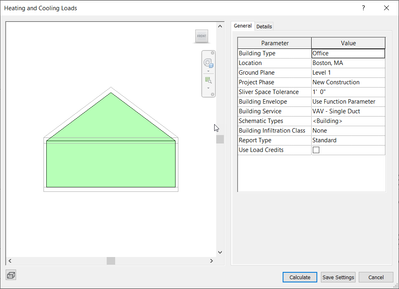

Sorry for the delay in replying.  It looks correct in all the elevations.  Here's one of them.



Space.jpgHere's an isometric view which due to the multiple slopes on the roof shows everything more clearly.



Isometric Space.jpg
