Elevation annotation size

morris_duncan
Participant
Participant

Hello group, I´m wondering on how to "control" the size of the lines of the elevation Annotation

I change the size of the symbol, but there´re lines that where not visible in the symbol falmily, and when I load it there are lines that are the size of the previous symbol.



Thanks in advance






0 Likes
Accepted solutions (1)
258 Views
6 Replies
Replies (6)
Message 2 of 7

Mike.FORM
Advisor
Advisor

If you are talking about the leader line weight, you can change that in the type properties of the spot elevation.




0 Likes
Message 3 of 7

morris_duncan
Participant
Participant


Nope, I´m Talking about the line that I marked with orange in the upper image



0 Likes
Message 4 of 7

Mike.FORM
Advisor
Advisor

Look in object styles in the project under spot elevations.

If it is a subcategory in spot elevations, once its loaded into the project, making changes to that subcategory in the family does not update it in the project. You need to update it in the project.




0 Likes
Message 5 of 7

morris_duncan
Participant
Participant

The Issue is not about line weigth, but about the size, I "rescaled" the annotation symbol, but when I loaded the family into my  project those lines appeared and I don´t know how to resize that.



0 Likes
Message 6 of 7

Mike.FORM
Advisor
Advisor
Accepted solution

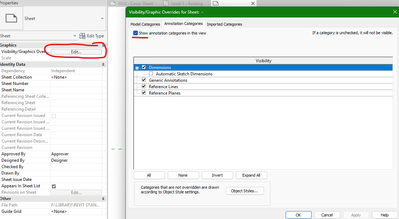

edit the family, select the "-" sheet in the family, check the vg settings, and make sure annotations are turned on so you see that line in the family.





Message 7 of 7

morris_duncan
Participant
Participant

Sir, you are a genius !!!!
So many thanks
