Edit Wall Assembly Preview

Hi all,

For some reason the wall previews in this project only appear in what seems to be a Coarse View, does anybody have an idea how can I have all separate layers to appear in the floor plan?



wall preview.JPG

14 ANTWORTEN 14
Nachricht 2 von 15
ToanDN
als Antwort auf: dgencheva

Can you show the entire window of the wall assembly dialog?

Nachricht 3 von 15
dgencheva
als Antwort auf: ToanDN

See below:



wall edit dialogue.JPG

Nachricht 4 von 15
barthbradley
als Antwort auf: dgencheva

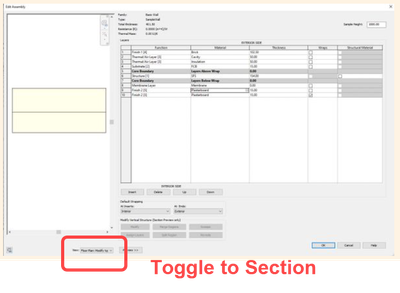

Are you wanting Section Preview?



Section Preview.png

Nachricht 5 von 15
dgencheva
als Antwort auf: barthbradley

The section preview shows all layers separated, I was wondering why they aren't showing like that in plan, too.

Nachricht 6 von 15
barthbradley
als Antwort auf: dgencheva

Probably because the View is Coarse Detail Level.




Nachricht 7 von 15
dgencheva
als Antwort auf: barthbradley

That's what I originally thought too, but I didn't see this setting available within the Edit Assembly dialogue. Have you got an idea where could I find it?
Nachricht 8 von 15
dgencheva
als Antwort auf: barthbradley

This is within the view itself, I was wondering about the Edit Wall Assembly dialogue. The layers are visible in the actual view itself.
Nachricht 9 von 15
barthbradley
als Antwort auf: dgencheva
Nachricht 10 von 15
barthbradley
als Antwort auf: dgencheva

AH! I SEE! Sorry. I'm a little slow this morning.



Yeah, that's very odd.



Thinking....





...maybe the video driver?  Dunno.

Nachricht 11 von 15
barthbradley
als Antwort auf: dgencheva

Is this an isolated instance?

Nachricht 12 von 15
dgencheva
als Antwort auf: barthbradley

It seems to be, I just checked the rest of the wall types and they all seem to be showing as you would expect!
Nachricht 13 von 15
barthbradley
als Antwort auf: dgencheva

Let's see what it looks like on my end. Post the file.

Nachricht 14 von 15
ToanDN
als Antwort auf: dgencheva

Change Sample Height to 3000. Then close and re-open preview panel.








Nachricht 15 von 15
lim.wendy
