Door Elevation Swing Lines

8 ANTWORTEN 8
GELÖST
Antworten
Nachricht 1 von 9
Anonymous
5279 Aufrufe, 8 Antworten

Door Elevation Swing Lines

Hi there!

I have a door that shows its swing line even though it is located behind a wall. My expectation is that the door and all its swing lines should disappear behind the wall!


8 ANTWORTEN 8
Nachricht 2 von 9
constantin.stroescu
als Antwort auf: Anonymous

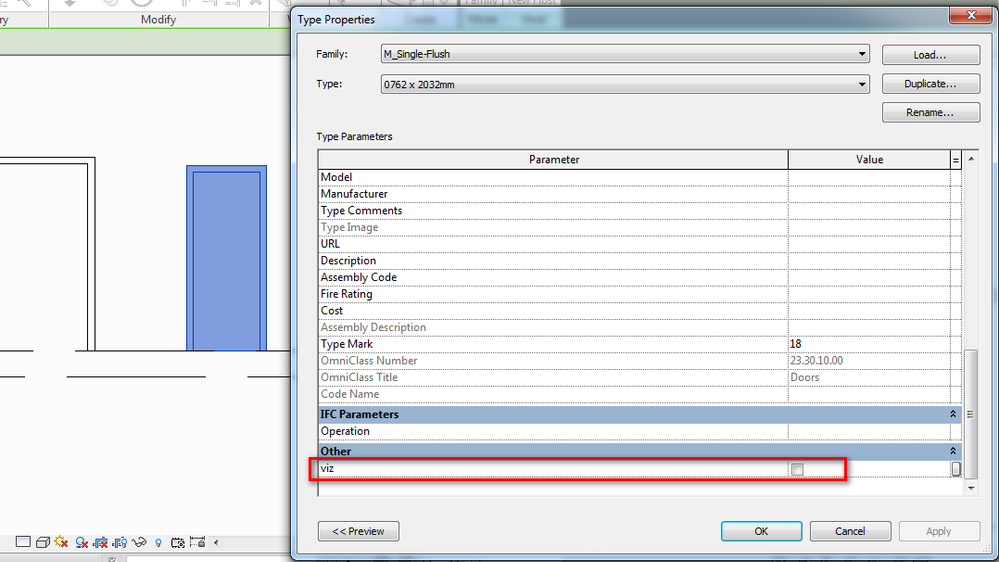

you can avoid such a situation if you introduce a Visibility parameter (boolean) for the Symbolic Lines in Door Family.





Constantin Stroescu

EESignature

Nachricht 3 von 9
ToanDN
als Antwort auf: Anonymous

Do you have any floor clearance geometry in the door family that still crossed by the view clipping depth?
Nachricht 4 von 9
syman2000
als Antwort auf: Anonymous

I would change the elevation swing from Symbolic line to model line.

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 5 von 9
ToanDN
als Antwort auf: syman2000

Using model lines for elevation swings is not a bad idea, especially if you have doors in angled walls.

Nachricht 6 von 9
FAIR59
als Antwort auf: Anonymous

For the symbolic lines:

  • Untick the checkbox for [Draw in Foreground]
  • make sure they are drawn in the right workplane.
Nachricht 7 von 9
barthbradley
als Antwort auf: FAIR59

Model Line?  I think that's exactly what is causing the issue in the first place. I'm betting there's a misplaced model line place in front of the door in the Family. That Model Line is within the cut plane of the Project View, which is causing the Swing Line to be visible, even those the door geometry is obscured by a wall.

Nachricht 8 von 9
ennujozlagam
als Antwort auf: Anonymous

share your door family to check. thanks





Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 9 von 9
Anonymous
als Antwort auf: syman2000

Thank you, Syman. This worked.
