DOME STRUCTURE PROFILE IN REIVT 2019 - MULLIONS - U GRID AND V GRID

Can any one help me to make dome like such in skp screenshot for revit. I want to make in in Revit 2019 but when i create mass and divide its surface -then  i cannot change its U griid and V grid division as per the AutoCAD screenshot i mentioned (I want to change its profile). also how can i add my custom beam in the mullions. I want to add metal hollow beams and Rings to the end. I really appreciate if someone have its solution for this.this an example onlythis an example onlyThis is my real projectThis is my real projectTOP VIEW actual dimensions for dome gridsactual dimensions for dome grids

7 ANTWORTEN 7
Nachricht 2 von 8
barthbradley
als Antwort auf: P93mahapatra

Open the OOTB Mass Dome Family (it fully parametric!) and Divide the Surface.




Nachricht 3 von 8
P93mahapatra
als Antwort auf: barthbradley

Yes this one I know but look at my dome top floor plan it’s different. The one you told me it’s getting at end centre.. I need in different way. Just try to understand if you can from my screenshot  of SketchUp also. I really appreciate your reply. :lächelndes_Gesicht_mit_lächelnden_Augen:

Nachricht 4 von 8
barthbradley
als Antwort auf: P93mahapatra

Like I said, it's fully parametric. But, you're going to need to create two 180 degrees revolve to be able to divide surfaces.  Can't divide your 360 dome.




Nachricht 5 von 8
syman2000
als Antwort auf: P93mahapatra

For massing, I would create revolve arc to create a dome. Then you would create straight line extrusion to get the grid profile.

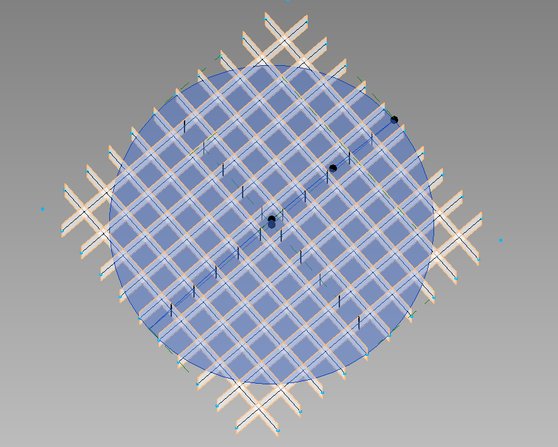

Dome with straight void extrusion.png



You may create another massing with the same shape and void as inverse so you get the mullion profile.



dome with inverse extrusion.png



Load both massing into the project. Then you would use model by face using roof. Then create roof call glazing and apply glazing material. Once you apply the roof thickness, you will end up with the look like the screenshot below.



model by face using roof.png

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 6 von 8
P93mahapatra
als Antwort auf: syman2000

Do you have video for this ?

Nachricht 7 von 8
P93mahapatra
als Antwort auf: syman2000

I really appreciate if you the video link.it will help a lot,

Nachricht 8 von 8
syman2000
als Antwort auf: P93mahapatra

Here you go



https://youtu.be/BLFQ7RAwTdA
