Detail Lines. Revit> To Autocad> Family Editor with least amount of drama

payingtoomuch
Collaborator
Collaborator

Looking for some "consensus" as to the most direct approach to get some random detail lines brought into a family that I'm creating.



My understanding is that you cannot simply copy/ paste into the family OR into cad.



So that would mean that I need to export to cad and then load that file into the family.



Which actually means that I need to create a drafting view that contains only the linework I need> Export to Cad> Locate the File> Drag and drop into the Revit family (or import).



Just want to make sure I'm not missing something here. Seems like there should be a more direct way to do this.

0 Likes
Accepted solutions (2)
161 Views
6 Replies
Replies (6)
Message 2 of 7

SteveKStafford
Mentor
Mentor
Accepted solution

In some cases, in a project file, the lines in a filled region sketch can be copied to clipboard and then pasted into a family as lines.


Steve Stafford
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
EESignature

Message 3 of 7

RLY_15
Advisor
Advisor
Accepted solution

Depends on the original source of the Revit detail lines.

From a drafting view? Shouldn't be an issue, and you can readily test this method yourself.

From a modelling view? You get this error (I don't understand the applicability of that error message, but it is what you get)






I'm hesitant to recommend a Dynamo method because it will be based on the source of the detail lines - you'd have to translate/scale the coordinates of the detail lines towards 0,0,0 to avoid some crazy stuff happening in the family editor environment (think of a site plan measured in hundreds of feet versus a family annotation that might be measured in inches).





If it truly is just Drafting View -> Family File View, copy+paste is probably the least drama you can have.





0 Likes
Message 4 of 7

mari.shimode
Community Manager
Community Manager

Hi @payingtoomuch, did the information provided answer your question? If so, please use Accept Solution so that others may find this in the future. Thank you.



Mari Shimode
Community Manager
0 Likes
Message 5 of 7

payingtoomuch
Collaborator
Collaborator

Apologies for the late reply.... took some time off.

Assuming you're thinking of this as a work around of sorts. If I have some known 2d/ detail linework I would like to copy/ paste into a family, then I could create a filled region with the the lines I need then copy paste that into the family.

Well, I did a quick test and it's not working for me. Don't want to get bogged down in this if I'm missing something here. What I did was create a random rectangular filled region> copied that to the clipboard> opened a random 3D family> opened a sketch in the 3D family for an extrusion> tried pasting the filled region into that. I get the error message "can't copy 2d elements into a 3D family". TBH I gave up quickly on this..... in the hopes of some more insight.

0 Likes
Message 6 of 7

payingtoomuch
Collaborator
Collaborator

@RLY_15 wrote:

Depends on the original source of the Revit detail lines.

From a drafting view? Shouldn't be an issue, and you can readily test this method yourself.

"Which actually means that I need to create a drafting view that contains only the linework I need> Export to Cad> Locate the File> Drag and drop into the Revit family (or import)".... from my original post. So sounds like you're saying if I have the linework in a drafting view then I should be able to bypass the cad component here.....

I'm able to get this to work when copy/ pasting from a drafting view to a new family. Specifically a new "detail" family. However. if I want to copy that 2d linework into a 3D family to use as an extrusion (etc), I'm not getting anywhere.

As example, If I open a generic model line based family template and try to paste in some random 2d linework I get this


Kind of like your below example the way this is worded makes no sense to me.... I'm attempting to copy between drafting view and a family....

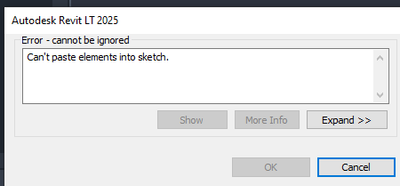

Likewise, if I open a 3D family template> create extrusion> try to copy paste random 2d linework from a drafting view into the sketch, I get this.....




So, for the most part, it seems like I can't copy any 2d linework directly from revit that I would like to use and if I can't copy 2d linework into a 3D family then seems like I still would need to go through autocad.

As mentioned before (I retested), I can take a drafting view> export it to cad> then drag/ drop it into any of the family types (2d or 3d)..... at least that's what I'm experiencing at the moment. I can also drag and drop it into a sketch (say extrusion profile sketch) within a family template, and that works as well.



Would like to get to the bottom of this. Is this really the solution to moving 2d linework in a revit project into a revit family to use the linework for creating extrusions and such or am I still missing something?



From a modelling view? You get this error (I don't understand the applicability of that error message, but it is what you get)






I'm hesitant to recommend a Dynamo method because it will be based on the source of the detail lines - you'd have to translate/scale the coordinates of the detail lines towards 0,0,0 to avoid some crazy stuff happening in the family editor environment (think of a site plan measured in hundreds of feet versus a family annotation that might be measured in inches). I wouldn't have a clue where to begin with this potential solution any way har har.





If it truly is just Drafting View -> Family File View, copy+paste is probably the least drama you can have. Not exactly following here. Are you saying simply copy +paste from drafting view to a family? If so, then I guess I really am missing something above. UNLESS we're just talking 2d families.



Thanks for the interest/ help.






0 Likes
Message 7 of 7

RLY_15
Advisor
Advisor

The copy + paste I was referring to unfortunately was specific to model/symbol line elements, not extrusion curves. So 2D to symbolic/2D, not 2D to geometry definition.



You should be able to use 2D lines as the 'pick line' selection for 3D definitions, but this will mean a bunch of clicks.

0 Likes
