Detail Family - Trying to cut arrayed lines at angle

15 ANTWORTEN 15
Antworten
Nachricht 1 von 16
Mike_Sanderson
722 Aufrufe, 15 Antworten

Detail Family - Trying to cut arrayed lines at angle

I am trying to make a plywood detail component with an adjustable angle to show a cut at the end. The length, width and angle all work fine but I am struggling to figure out the lines showing the plywood layers.

Originally the family did not have an adjustable angle. So the plywood layers are a nested family that arrays at 3mm spacing, which works fine.

If I want to add the angle, an array is not the right answer because they are all the same length.

I have tried a masking region over the cut part but when the family width is made wider any new array items are on top of the masking region.

My only other thought is to have detail lines with visibility parameters that turn on with the relevant width.



Thoughts?




15 ANTWORTEN 15
Nachricht 2 von 16
jay_colcombe
als Antwort auf: Mike_Sanderson

Does exploding/ungrouping the Array allow such edits?

Jay Colcombe

Autodesk Certified Instructor
Revit Architecture & Structure Certified Professional
AutoCAD Certified Professional
B.Sc. Hons Civil & Structural Engineering

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 3 von 16
Alfredo_Medina
als Antwort auf: Mike_Sanderson

The lines representing the plywood layers should be a filled region with horizontal lines. Then you don't have to cut anything, nor make arrays.


Alfredo Medina _________________________________________________________________ ______
Licensed Architect (Florida) | Freelance Instructor | Profile on Linkedin
Nachricht 4 von 16
Mike_Sanderson
als Antwort auf: Alfredo_Medina

@Alfredo_Medina yes I have tried this. However, it will only work as a drafting filled region, so it scales, I was trying to keep a consistent 3mm spacing regardless of scale. A model filled region will not let you go this small.

Nachricht 5 von 16
Mike_Sanderson
als Antwort auf: jay_colcombe

Once you ungroup you can no longer array, so that will not work sorry.

Nachricht 6 von 16
Mike_Sanderson
als Antwort auf: Alfredo_Medina

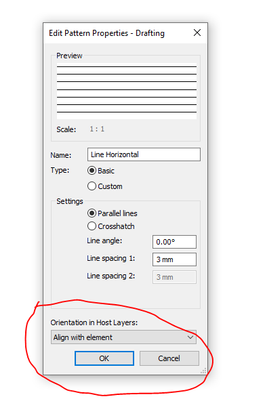

@Alfredo_Medina now the next issue. When using a filled region. Horizontal lines in this case. They do not orientate with the element. I have played with the orientation, but no change. The lines are horizontal relative to the page.




Nachricht 7 von 16
Alfredo_Medina
als Antwort auf: Mike_Sanderson

You can do a pattern that follows the orientation if the pattern is model. I made a test, and the lines are always parallel to the direction. But 3 mm spacing is not even possible. I get an error saying that the pattern would be too dense.

But, definitely, doing an array of lines is "overkill" for this purpose. Just a simple filled region would do the job.

Plus, a detail component for plywood already exists in the library. The pattern is not parallel lines but another pattern that has become standard for plywood. I think you're spending time in something that already exists.


Alfredo Medina _________________________________________________________________ ______
Licensed Architect (Florida) | Freelance Instructor | Profile on Linkedin
Nachricht 8 von 16
barthbradley
als Antwort auf: Mike_Sanderson

I can get it to work using a solid white filled region (in lieu of Masking Region) and by nesting in a detail line to use in the array.  The nested line's length is associated to the "l" parameter.



Parametric Detail Family1.pngParametric Detail Family2.pngParametric Detail Family3.png

Parametric Detail Family4.png

Parametric Detail Family5.png

Nachricht 9 von 16
Mike_Sanderson
als Antwort auf: barthbradley

That looks exactly what I want to achieve. Can you share the family file with me?

Nachricht 10 von 16
barthbradley
als Antwort auf: Mike_Sanderson

Hope you're using 2024.

Nachricht 11 von 16
ToanDN
als Antwort auf: Mike_Sanderson

Can you use a model pattern instead?

Nachricht 12 von 16
Mike_Sanderson
als Antwort auf: ToanDN

@ToanDN The minimum line spacing Revit will allow for a model pattern is 13mm. I want 3mm.

I have used detail lines with a visibility parameter on every 2nd line and a formula so when the width becomes small it turns of half the lines.

Nachricht 13 von 16
barthbradley
als Antwort auf: Mike_Sanderson

.

Nachricht 14 von 16
Mike_Sanderson
als Antwort auf: barthbradley

@barthbradley Ah yes, I have looked at your family, this is exactly how I had it working. However I wanted to avoid using filled regions because it has an issue when you have a mitre corner. I have a solution that is near enough to what I want. I have used detail lines with a visibility parameter on every 2nd line and a formula so when the width becomes small it turns of half the lines.




Nachricht 15 von 16
Mike_Sanderson
als Antwort auf: barthbradley

@barthbradley Really? I have tried in 2021, as that is what we are still using in the office. I also just tried in 2024, but it is still not working for me. I also tried making a new pattern with 3mm spacing in Pyrevit Pattern Maker and that won't do it either. The smallest spacing I can make is 13mm.

Anyway, thanks for your help. My solution is good enough for me.




Nachricht 16 von 16
barthbradley
als Antwort auf: Mike_Sanderson


@Mike_Sanderson wrote:

@barthbradley Really?


No. It was a messy brain fart. I'm okay though.



BTW: I bumped the post if you didn't notice.
