Design option - unexpected outline color

Hi,

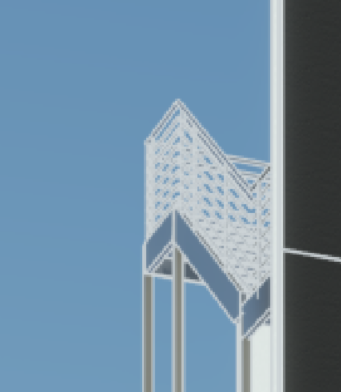

I added a fence to the main model then added it to both design options. In my VGO, I have one of the design options selected. However, the fence still shows the light color outline suggesting it isn't a part of the option:


The "global" option setting at the bottom says main model.

Revit is amazing
8 ANTWORTEN 8
Nachricht 2 von 9
barthbradley
als Antwort auf: cbt990
Nachricht 3 von 9
cbt990
als Antwort auf: barthbradley

I tried to.


When I toggle to Scheme B, the stucco scheme changes as intended, but the visibility of the fence lines doesn't change.



Revit is amazing
Nachricht 4 von 9
barthbradley
als Antwort auf: cbt990

I'd have to look at the file. Post it.

Nachricht 5 von 9
cbt990
als Antwort auf: barthbradley

Sorry can't. Here you can see I have entered "edit mode" for Scheme A. The parts are selectable and outlined with dark lines. the fence is selectable and outlined with light lines.




Revit is amazing
Nachricht 6 von 9
cbt990
als Antwort auf: cbt990


WTF...

Revit is amazing
Nachricht 7 von 9
ToanDN
als Antwort auf: cbt990


@cbt990 wrote:


WTF...


So it didn't occur to you that the Railing was already halftoned before adding it to design options?

Nachricht 8 von 9
cbt990
als Antwort auf: cbt990

When I print a set with multiple dedicated options, only the active option prints with dark linework. all other options in other options appear like this:


Is there a way to override design option graphic styles so that each one prints like a "normal" view?



Revit is amazing
Nachricht 9 von 9
ToanDN
als Antwort auf: cbt990

You need to finish Editing the Option, by set the below to Main Model.
