Decorative Gypsum Wall and Ceiling

hi all ,

I am new to Revit , so my first question is that I need to know what is the best method to draw a decorative wall . It need to be swept all around the opening/door, and it has different thicknesses.

my second question : is sweep the best way to draw the reflected ceiling? or are there any other sufficient methods?

thanks in advanceCeiling-DoorCeiling-DoorGypsum Ceiling DetailGypsum Ceiling DetailSectionSectionDecoration RefDecoration Ref



10 ANTWORTEN 10
Nachricht 2 von 11
barthbradley
als Antwort auf: Anonymous

You can create it with a sweep using your profile with little to no effort.



Sweep Crown.jpg

Nachricht 3 von 11
barthbradley
als Antwort auf: Anonymous

I did it as an In-Place Modeled Component. A Sweep pathed along the Ceiling edge and using a Profile I created from your DWG linework.



Sweep Crown 3.jpgSweep Crown 2.jpg

Nachricht 4 von 11
syman2000
als Antwort auf: Anonymous

For ceiling I just use railing and use profile. As for opening, I just use opening and use profile to create the look you wanted. See attached for sample and you can add expand on the detail.

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 5 von 11
Anonymous
als Antwort auf: syman2000

thank you for your reply . Can you elaborate the solution for the opening more please?

Nachricht 6 von 11
syman2000
als Antwort auf: Anonymous

If you edit the family, it consist of 4 different items.



First it is the opening





OpeningOpening

Next we have extruded element for both sides of the wall





Extrude TrimExtrude Trim





Next the base is another extrude element

Extrude BaseExtrude Base



Finally we have extrude profile along the outside and inside edge. This appear for both sides.

Profile along the edgeProfile along the edge

Use join geometry so you will have custom opening frame.

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 7 von 11
Anonymous
als Antwort auf: syman2000

Thank you so much ,  I am finding it difficult to do the outer lines , it keep asking to choose a plane.

@syman2000

Nachricht 8 von 11
barthbradley
als Antwort auf: Anonymous

@Anonymous: You can Path a Model Sweep Profile along almost anything - including a Model Line. Use your Work Plane Tool, Pick a Plane to draw on (this sets the selected surface as the Current Work Plane) and then use your Model Line Tool to draw your Sweep Path. After sketching your Model Line Path, start a Component: Model In-Place  session, select Sweep and Select 3D Path (your Model Lines). Now you can assign a Profile Family or hand-draw a Profile to extrude along the Path, and close out  of the editing session.  Voila! Sweep created!



Sweep Pathed Along Model Lines.jpg

Nachricht 9 von 11
barthbradley
als Antwort auf: Anonymous
Nachricht 10 von 11
syman2000
als Antwort auf: Anonymous

@barthbradleyidea is the way to go. However if you do want to control which surface you want it to draw, you can also create a reference plane and give it name.



reference plane.png

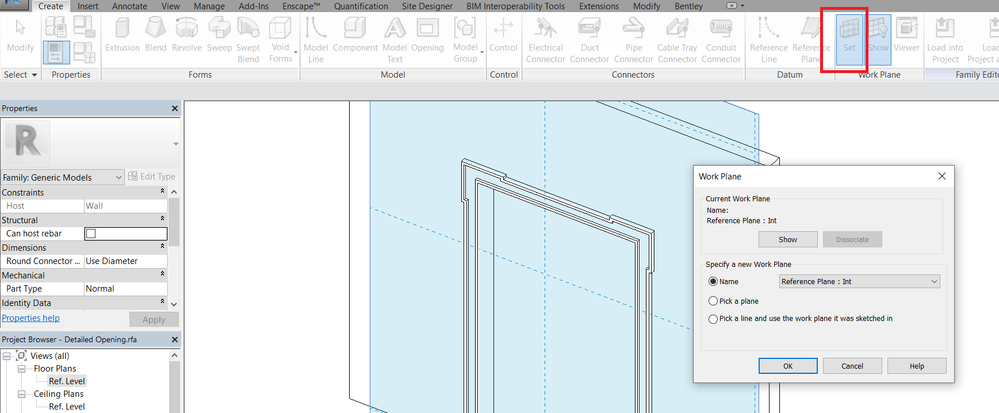

Go to 3d and click on SHOW reference plane. Then click on SET and pick your named reference plane




Then you can draw whatever profile.

reference plane 2.png

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 11 von 11
Anonymous
als Antwort auf: barthbradley

thank you so much :leicht_lächelndes_Gesicht: @barthbradley @syman2000
