Cut Profile tool not updating Fill Pattern on Plan View

11 ANTWORTEN 11
Antworten
Nachricht 1 von 12
jagostinho74
936 Aufrufe, 11 Antworten

Cut Profile tool not updating Fill Pattern on Plan View

Cut Profile tool fails to update the fill pattern for one of the elements on Plan View.

It works for Section views.



The AKN mentions that it should work on plan, RCP, and section views.









Assistant BIM/CAD Manager

Manchester, UK


Tags (2)
11 ANTWORTEN 11
Nachricht 2 von 12
MostafaElashmawy
als Antwort auf: jagostinho74

yes it work in plan, but only for cut patterns (not Surface/projection patterns)





Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 3 von 12
jagostinho74
als Antwort auf: MostafaElashmawy

Thanks @MostafaElashmawy, but I was using a Cut Pattern.



You mean, the Fill Pattern assigned to the Cut on the Material setup, right?

Assistant BIM/CAD Manager

Manchester, UK


Nachricht 4 von 12
MostafaElashmawy
als Antwort auf: jagostinho74

I mean that the element must be cut in view (the element should be passing through the cut plane of the view).

Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 5 von 12
jagostinho74
als Antwort auf: MostafaElashmawy

I see.



It was too, being cut in view.

Assistant BIM/CAD Manager

Manchester, UK


Nachricht 6 von 12
Corsten.Au
als Antwort auf: jagostinho74

Hi



The Cut Pattern ( for Elements Cutting ) depend on the material assigned to that element..



Ex: Wall , Cut Patter

Wire frame : Nothing to show

Shaded : One solid Colour

Consistent colour : Again one colour will show as per property of the Material

Coarse, Fine Plan ( Section , Cut Pattern : Will depend on the materials assign to those layers..



All these holds true for any element which are cutting, Windows, Doors, Walls, In-place family, imported family etc..



in Families though, one can mention which lines to be shown when cut..(Cut projection lines, Cut property lines ) etc..



Cheers!

Corsten
Building Designer
Nachricht 7 von 12
MostafaElashmawy
als Antwort auf: jagostinho74

What is the category of the element you are trying to use the cut profile with?



sorry but I can't see your screencast



Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 8 von 12
jagostinho74
als Antwort auf: MostafaElashmawy

I was using it w/ Walls.









Assistant BIM/CAD Manager

Manchester, UK


Nachricht 9 von 12
Corsten.Au
als Antwort auf: jagostinho74



This should help you.

cut profile.JPG

Corsten
Building Designer
Nachricht 10 von 12
ToanDN
als Antwort auf: jagostinho74

Are the two wall not joined?  it works fine here.



Scratch that.  Works either way.






Nachricht 11 von 12
MostafaElashmawy
als Antwort auf: jagostinho74

ah it's clear now.

the cut profile is done.

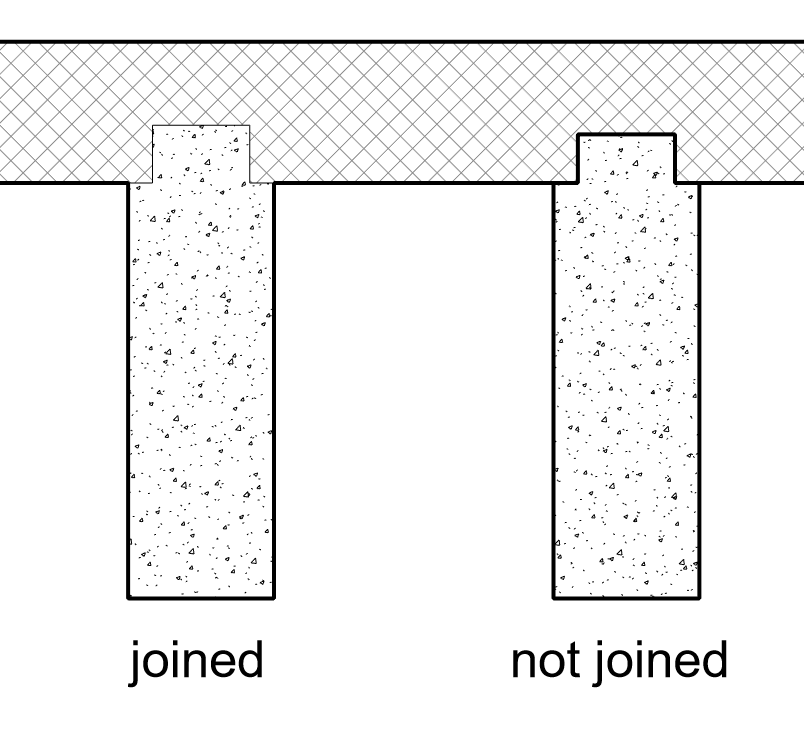

but the two wall must be joined to work correctly.

Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 12 von 12
jagostinho74
als Antwort auf: jagostinho74

Thank you all.



For some reason I cannot join the walls together. Checked this list but nothing applies.



Still cannot get it to work. I have attached the RVT I used to test it.



Assistant BIM/CAD Manager

Manchester, UK
