Cut problem

Good day,



I have created a line-based generic model roof trim. This family needs to be cut out at the columns, so I tried to create a void in the EPDM roofing as test to create a void and cut it, but it does not cut.

I have been playing around with it for 1,5 hour now, without succes.

A new generic model void family does cut with it, but this nested generic model doesn't cut with the roof trim.



There must be something obvious I oversee and I hope any of you can help me out quickly.



Thanks in advance!

Daktrim void cutting.PNG

7 ANTWORTEN 7
Nachricht 2 von 8
andre.micka
als Antwort auf: j-davelaar

Hi,



try to create your void in the edition if your roof

Nachricht 3 von 8
j-davelaar
als Antwort auf: j-davelaar

Can you explain what you exactly mean?

Nachricht 4 von 8
andre.micka
als Antwort auf: j-davelaar

Select your roof and look in the upper ribbon, there is an icon vertical cut.

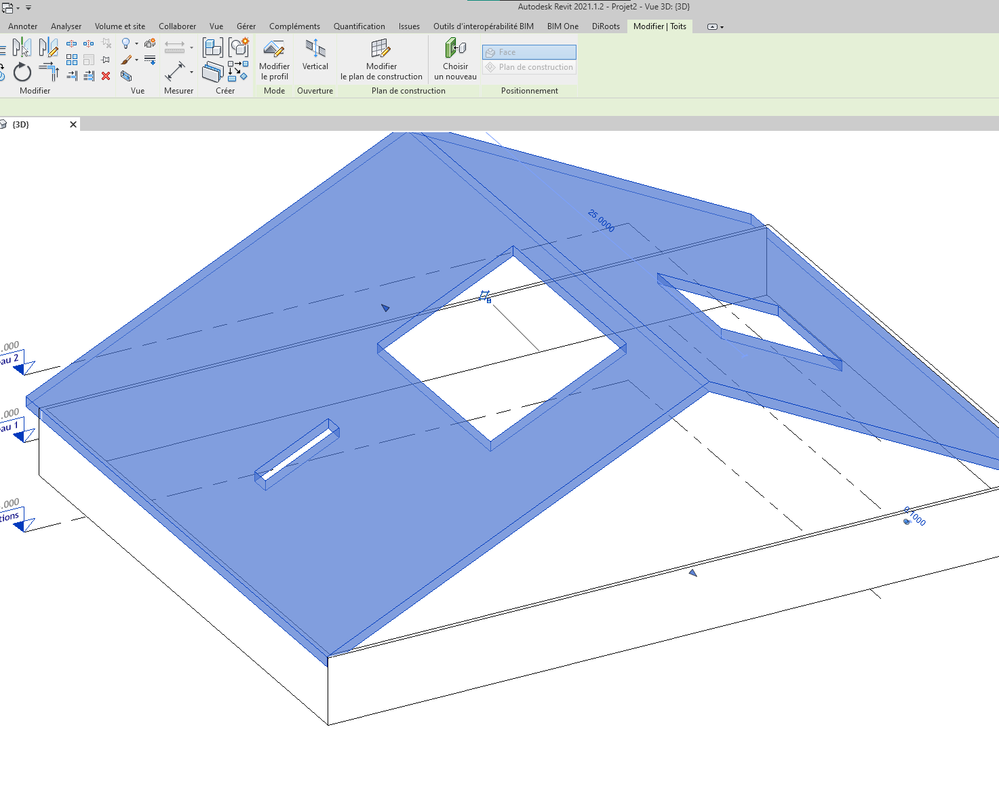

After , you just have to draw your void.image_2021-02-08_172243.png



Nachricht 5 von 8
j-davelaar
als Antwort auf: andre.micka

Everything in the project is a Generic Model, so this won't work for me.

Nachricht 6 von 8
andre.micka
als Antwort auf: j-davelaar

Can you send your project or a part of it with your roof?

Nachricht 7 von 8
j-davelaar
als Antwort auf: j-davelaar

Yes, hereby the two families.

Nachricht 8 von 8
j-davelaar
als Antwort auf: j-davelaar

I have solved it by adding a shared nested void in the EPDM, thank you for your time anyway!
