curtain wall issues

Hi there,

I have left a note on site plan in this revit file. Please assist me with technical issue.

Thank you

3 ANTWORTEN 3
Nachricht 2 von 4
L.Maas
als Antwort auf: Anonymous

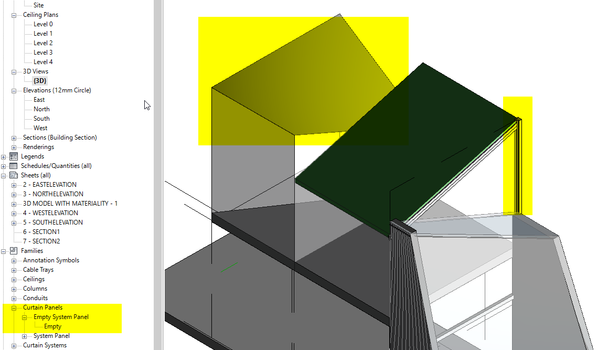

Revit Curtain Panels.png



In a standard template there is a special (empty) curtain panel which you use if you want to have no panels in certain spots. If needed you can copy this from another project/template by using transfer project standards.

(Create a curtain wall with an "Empty Panel" and copy that curtain wall to your project. The empty panel automatically will be copied with the curtaine wall to your project)



I have no problem to place mullions (sometimes easier to do in a 3D view). You might want to rotate the grid so it matches with the angle of the roof.



The third roof is double curved (similar to a saddle) that gives problem to place mullions. In this case you might need create it in a differetn way (in place family maybe)



Always consider how it would be build in real life. Double curved objects are often a nightmare to produce (and usually very costrly)

Louis

EESignature

Please mention Revit version, especially when uploading Revit files.

Nachricht 3 von 4
barthbradley
als Antwort auf: Anonymous

I'll weigh in on FORM 3 Roof question.



FORM 3 Roof is a Basic Roof (see "GlazingA"). You cannot add Grids/Mullion to it.  Nor will it accept a Sloped Glazing Roof or Curtain Wall by [Mass] Face. So, another approach you could use would be to create UV Grids via a Divided Mass Surface (see GlazingB) and apply a Pattern-Based Curtain Panel (see GlazingC).








Nachricht 4 von 4
Anonymous
als Antwort auf: barthbradley

Good morning Barth,

Thank you for your detailed explanation.

I will try again. Have a great day:)
