Curtain Wall Cladding

14 ANTWORTEN 14
Antworten
Nachricht 1 von 15
jjjoao2
1440 Aufrufe, 14 Antworten

Curtain Wall Cladding

Hi everyone,

So, i´m tryng to create a Wood Cladding (attached) with a curtain wall but i can´t find a solution because of the Grids.

What i want.jpg

Can someone help me?



Here´s my disaster result:


14 ANTWORTEN 14
Nachricht 2 von 15
KraiggC
als Antwort auf: jjjoao2

What are the grids preventing? Are you trying to get the grids closer together? If so then what are your grid parameter settings?

Nachricht 3 von 15
jjjoao2
als Antwort auf: KraiggC

@KraiggC, i appreciate your response.

Yes, i´m trying to get the grids closer, about 2/3cm. Because my cladding have 2x3cm each.



Below my grid parameter settings:


Nachricht 4 von 15
KraiggC
als Antwort auf: jjjoao2

You can noticed in the attached image. Change your vertical grid to 'Fixed Distance', and your distance to 4cm.. ignore my 4" haha


Nachricht 5 von 15
jjjoao2
als Antwort auf: KraiggC

@KraiggC

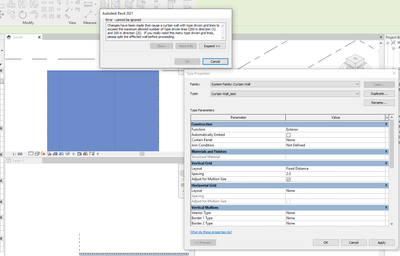

When i put 2 or 3cm, it shows an error:


Nachricht 6 von 15
barthbradley
als Antwort auf: jjjoao2

So, you want the Panels to be in front of the Mullions -- side-by-side, without any spacing between them?



Post the File.

Nachricht 7 von 15
David_W_Koch
als Antwort auf: jjjoao2

Reduce the size of your Curtain Wall (and then add one or more Curtain Walls to cover the area you need to have convered).  Based on the error message, there is a limit of 200 grid lines in each direction.  At a 2 cm spacing, your Curtain Wall will have more than 200 grid lines in at least one direction.


David Koch
AutoCAD Architecture and Revit User
Blog | LinkedIn
EESignature

Nachricht 8 von 15
linkboy
als Antwort auf: jjjoao2

Over the limits allowed for grids. I have seen the same error info when I try reduce the grids spacing in 2021.




Nachricht 9 von 15
jjjoao2
als Antwort auf: David_W_Koch

@David_W_Koch

Is there a way to remove those grids?

I will try to reduce the panel and get back to you guys.

Nachricht 10 von 15
jjjoao2
als Antwort auf: David_W_Koch

It didn´t work. Same error.
Nachricht 11 von 15
jjjoao2
als Antwort auf: barthbradley

@barthbradley

This is the solution that i want but it doens´t seem to work.




 2cm between them.

Nachricht 12 von 15
barthbradley
als Antwort auf: jjjoao2

What the spacing between the grids?  Not 2cm.



Can you post your file?

Nachricht 13 von 15
syman2000
als Antwort auf: jjjoao2

I would create panel with built in array rather than using grid to split apart the panel into smaller segment.

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 14 von 15
jjjoao2
als Antwort auf: syman2000

@syman2000,

Thank your for sending your file. For this particular project it worked.

Still i want to understand why it doen´t work with curtain wall.

Have a nice weekend.

Nachricht 15 von 15
ToanDN
als Antwort auf: jjjoao2

The reason it didn't work because you exceeded the maximum number of grids in a curtain wall. One of the posts above already indicated that and suggested to split the curtain wall into shorter segments to overcome the limitation.
