Curtain wall auto embedded in solid wall doesn't render as glass

8 ANTWORTEN 8
GELÖST
Antworten
Nachricht 1 von 9
hliS658H
363 Aufrufe, 8 Antworten

Curtain wall auto embedded in solid wall doesn't render as glass

I have a curtain wall with sliding door auto-embedded in a solid wall, both the curtain wall and the sliding door use the same glass material, but the curtain wall doesn't show the glass as the sliding door in rendering. I thought it might be because the solid wall overlaps with the curtainwall, so I edited the wall profile by carving out the part of wall overlapping with the curtain wall, but it didn't help. So what are the possible reasons? Thanks!






8 ANTWORTEN 8
Nachricht 2 von 9
syman2000
als Antwort auf: hliS658H

Which renderer are you using? Also do you have override material in the object override?






Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 3 von 9
hliS658H
als Antwort auf: syman2000

Enscape.



No override. I have another curtain wall type using the same glass showing the material correctly in the rendering






Nachricht 4 von 9
syman2000
als Antwort auf: hliS658H

Is the curtainwall set to different phase and your phase filter is set to show all? Share the sample so we can take a look.

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 5 von 9
ToanDN
als Antwort auf: hliS658H

Set the view to Show Complete.

Nachricht 6 von 9
hliS658H
als Antwort auf: syman2000


@syman2000 wrote:

Is the curtainwall set to different phase and your phase filter is set to show all? Share the sample so we can take a look.


New construction

Nachricht 7 von 9
ToanDN
als Antwort auf: hliS658H

You need to assign a glass material to the panel type.











Nachricht 8 von 9
syman2000
als Antwort auf: hliS658H

Looks like the panel is set to by category




When changing to the same material as sliding door, it will render correctly






Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 9 von 9
hliS658H
als Antwort auf: ToanDN

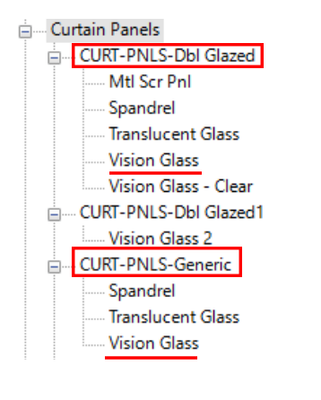

Thanks for helping me find out a mistake I made. There are several vision glass families in the project, I meant to use the one under CURT-PNLS- Dbl Glazed, didn't realize the other panel  was actually picked in the model.
