Curtain system from mass - horizontal segments

Hi



I've modelled a mass and assigned a curtain system to it. The idea is to get a facade as shown in the attachment - top sketch.

What Revit generates however is shown on the bottom sketch.



The vertical segments are ok, but Revit refuses to generate horizontal segments and despite several attempts. revit doesn't give me any options to change it.



Any thoughts?



Cheers

Erik

16 ANTWORTEN 16
Nachricht 2 von 17
ToanDN
als Antwort auf: Anonymous

The top is a divided surface based on intersecting references. The bottom is automatic UV generation.
Nachricht 3 von 17
Anonymous
als Antwort auf: ToanDN

.. so how do I edit the "curtain system" to get horizontal segments?

Nachricht 4 von 17
ToanDN
als Antwort auf: Anonymous

If the approach is using a divided surface to define the curtain wall then you need to draw reference planes where the horizontal and vertical grids are, name them, and create a divided surface using Intersects.  Turn on Nodes for the surface so that you can snap adaptive curtain panel and repeating them on the surface.






But, this is not the best approach if you only need horizontal and vertical grid curtain system on a flat surface.  In such case, you don't need to create the divided surface, just use Curtain System tool in project environment to create the Curtain system by faces of the mass.  It is more robust because you can set the grid spacing universally for the Curtain System, as well as Add/Remove/Relocate grid segments more freely using the native Curtain Grid tool.










Nachricht 5 von 17
Anonymous
als Antwort auf: ToanDN

Hi



The last approach you describe is excactly what I did. I modellesd a mass and assigned a "curtain system" to the face of it.

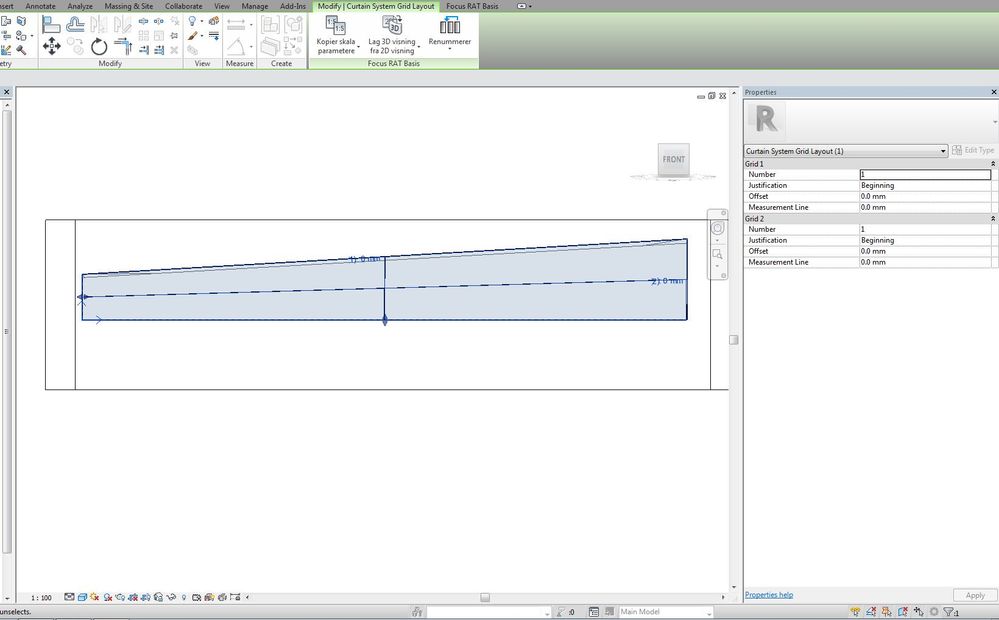

Then I click on the curtain system and choose "Configure Grid layout" - (the little icon that shows up in the middle of the curtain system):




But I can't figure out, how I get to edit the orientation of the segments - as I mentioned, I want them to be horizontal. I can see you have the option to adjust the angle on yours, but somehow that function is not available to me.

What do I need to click on to get this option?

Nachricht 6 von 17
ToanDN
als Antwort auf: Anonymous

Looks like the grid layout is set to a fixed number of spaces. Try set it
to a fixed, or min, or max distance.
Nachricht 7 von 17
Anonymous
als Antwort auf: ToanDN

Tried to minimize the number of divisions on the curtain system, but it doesn't change much..






Maybe I should add, that working with masses and curtain walls/systems is not something I have a lot of experience With.....

Nachricht 8 von 17
ToanDN
als Antwort auf: Anonymous

Set to distance, not division.
Nachricht 9 von 17
ToanDN
als Antwort auf: Anonymous


Nachricht 10 von 17
Anonymous
als Antwort auf: ToanDN

How do I get the options you are showing in Your example?

All I get is what is shown in the previous post. I can't edit layout or spacing.



Does it matter weheter the face is comleptely vertical or inclining. I haven't mentioned this, because I don't see why it would matter, but maybe it does...?

Nachricht 11 von 17
FGPerraudin
als Antwort auf: Anonymous

Hi @Anonymous,



First question: have you created a DIVIDED SURFACE or a CURTAIN SYSTEM?



These are two VERY DIFFERENT approaches that create both curtain systems resembling geometry.



The correct workflow you should apply considering your project is to first load the mass family into your project, and then create a curtain panel system by picking faces. (Create > curtain systems)



I have the impression that you have used the "divide surface" tool in the mass editor.

That tool is made for creating VERY complex systems (complex curvatures, compex patterns) and requires a good understanding of how the patterns are applied. They will require pattern adaptative components as well.



If you want to have the same options as Toan, use a curtain system.



Geometrywise, pattern surfaces will adapt to the geometry, curtain systems will cut the geometry without taking much care of the surface curvature/specificities.



Hope this was of help,



François



Francois-Gabriel Perraudin
BIM management and coaching

Nachricht 12 von 17
Anonymous
als Antwort auf: FGPerraudin

Hi





I modelled a mass using the "In Place" massing tool under "Massing & Site".



Then I applied a "Curtain System" using the "Curtain System" tool under "Model by Face".



My question is now, how I can edit this curtain system as described in the previous dialog.

I am able to change the number of segments in the system, but I can't find a way to make horizintal segments...



I have Attached the mass With the curtain system if you want to check it.



Regards

Erik

Nachricht 13 von 17
ToanDN
als Antwort auf: Anonymous

I must have said it three times but the point didn't get across. Do not
change the number of division. Change the spacing of the horizontal
division to a fixed dimension.
Nachricht 14 von 17
ToanDN
als Antwort auf: Anonymous


@Anonymous-78 wrote:

Hi





I modelled a mass using the "In Place" massing tool under "Massing & Site".



Then I applied a "Curtain System" using the "Curtain System" tool under "Model by Face".



My question is now, how I can edit this curtain system as described in the previous dialog.

I am able to change the number of segments in the system, but I can't find a way to make horizintal segments...



I have Attached the mass With the curtain system if you want to check it.



Regards

Erik


I just had a chance to open you attached file.  The face is slanted and that's why the horizontal grids don't respect the curtain system grid rule.  You may have to create a divided surface using intersects to define the horizontal grids (the first part of my first reply) unless someone can give you a better solution.




Nachricht 15 von 17
FGPerraudin
als Antwort auf: ToanDN

Hi Toan,



@Anonymous is right, on revit 2017 I couldn't solve this problem using your geometry.



But I found a solution (worked in my mind all night long)



Alright, basically you need the geometry to be perfectly planar.



So, in order to do that, I re-created an extrusion, then moved the top edge to create the slope.(1)

Finally, I substract a volume to make the height of the building skin variable as well.(2)

That way you garantee a perfectly planar surface



As you can see on the picture in light grey, when you create your curtain system, it works!



Ask me if you need more help,



Cheers,



François





Francois-Gabriel Perraudin
BIM management and coaching

Nachricht 16 von 17
ToanDN
als Antwort auf: FGPerraudin

Definitely sounds like a good solution.
Nachricht 17 von 17
Anonymous
als Antwort auf: FGPerraudin

Hi François







I haven't had the time to test this yet, but I will mark it as a solution since I haven't come across any other options.

I might write you, if I can't make it work though...



Thx for Your time!





Cheers

Erik
