Creating Horizontally tapered walls in revit 2023

6 ANTWORTEN 6
Antworten
Nachricht 1 von 7
jihad.development
447 Aufrufe, 6 Antworten

Creating Horizontally tapered walls in revit 2023

Hi there,



I've been trying to model the following image in Revit, I would like to create a wall family that is tapered in the plan not in the section, is that possible?



Horizontal Tappered Wall.jpg

6 ANTWORTEN 6
Nachricht 2 von 7
barthbradley
als Antwort auf: jihad.development

Join walls together



Join wall together1.pngJoin wall together2.png

Join wall together3.png

Nachricht 3 von 7

You choose model in place in home tab component button

Walls category

then draw the shape of tapered wall on the top while using extrude easy task on that track with the same shape you wish for



Accept my answer if it helps you

Nachricht 4 von 7

Thank you for your answer, What about the wall's layers then? Let's say I have an interior and exterior layers that I would like to keep the same thickness as the adjacent wall while changing the thickness of only the core layer

Nachricht 5 von 7

Choose wall category from model  inplace then create void with the same part you want to remove it completely

And so on you choose cut from modify panel and it will remove it from the main wall so you created void from model inplace to cut it  from the main wall as trick

@jihad.development

Accept my answer if it helps you

Nachricht 6 von 7
barthbradley
als Antwort auf: jihad.development

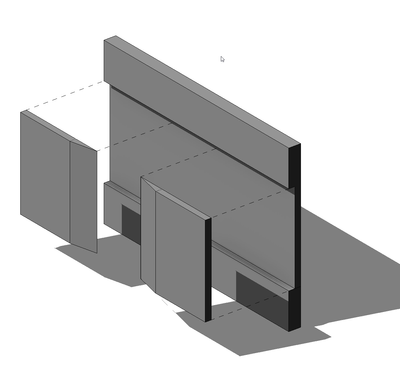

Join wall together4.pngJoin wall together5.png





Nachricht 7 von 7
barthbradley
als Antwort auf: jihad.development


@jihad.development wrote:

Thank you for your answer, What about the wall's layers then? Let's say I have an interior and exterior layers that I would like to keep the same thickness as the adjacent wall while changing the thickness of only the core layer






Think about how it will be constructed in the field and then model it in Revit the same exact same way.



Splayed 1.pngSplayed 2.png
