Creating ceiling plan view but the floor plan views visibility is off?

4 ANTWORTEN 4
Antworten
Nachricht 1 von 5
montesa3
266 Aufrufe, 4 Antworten

Creating ceiling plan view but the floor plan views visibility is off?

Hi! Still learning Revit and I have created a ceiling plan view within my project. I want to be able to see my floor plan while in that view to created different ceilings in each room. I edited the underlay to show my floor plan level 3 but there are extra lines that arent walls that I had created. I checked he visibility but I may be missing something. I have also attached a screenshot (my project is too big to upload )to show the difference between my floor plan and ceiling plan as I am confused. Hoping someone can help!

4 ANTWORTEN 4
Nachricht 2 von 5
jay_colcombe
als Antwort auf: montesa3

Are you using the Underlay Parameters in the Properties Palette?

Jay Colcombe

Autodesk Certified Instructor
Revit Architecture & Structure Certified Professional
AutoCAD Certified Professional
B.Sc. Hons Civil & Structural Engineering

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 3 von 5
montesa3
als Antwort auf: montesa3

Yes, In range base level I set it to Level 3, then in range top level I put unbounded but I changed each of those options and nothing changed.

Nachricht 4 von 5
jay_colcombe
als Antwort auf: montesa3

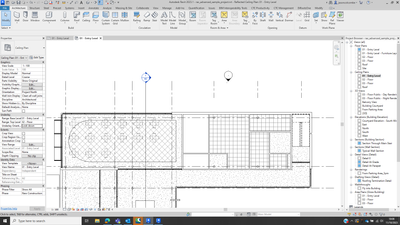

In this model I am in a Ceiling Plan for Floor 1 and want to see the layout below this ceiling so i set the following in the Underlay








This now shows everything below the Ceiling for this floor






Jay Colcombe

Autodesk Certified Instructor
Revit Architecture & Structure Certified Professional
AutoCAD Certified Professional
B.Sc. Hons Civil & Structural Engineering

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 5 von 5
hmunsell
als Antwort auf: montesa3


@montesa3 wrote:

...there are extra lines that arent walls that I had created.


are there extra lines showing in your RCP or you're missing these extra lines that you created and want to see in the RCP?

Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
