Creating a mass

2 ANTWORTEN 2
Antworten
Nachricht 1 von 3
GegH1
179 Aufrufe, 2 Antworten

Creating a mass

Someone will find this easy i'm sure. How do i create this as a mass?


Relatively new to Revit, teaching myself after 30 years on CAD

Creative Intentions
AutoCAD Certified Professional
Win 10 Pro 64bit, HP ZBook 17
2 ANTWORTEN 2
Nachricht 2 von 3
syman2000
als Antwort auf: GegH1

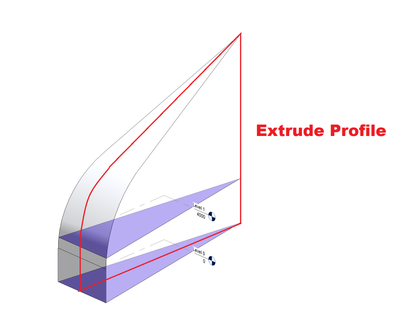

First I would extrude the profile




Then extrude the wedge shape to cut off the rest












Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 3 von 3
GegH1
als Antwort auf: GegH1

Perfect

but when i delete the outside bits it reverts to the extruded form


What's the command to split them off



Creative Intentions
AutoCAD Certified Professional
Win 10 Pro 64bit, HP ZBook 17
