Creating a complex rail/balustrade in Revit

5 ANTWORTEN 5
GELÖST
Antworten
Nachricht 1 von 6
TAZ-ZA
684 Aufrufe, 5 Antworten

Creating a complex rail/balustrade in Revit

Hello,

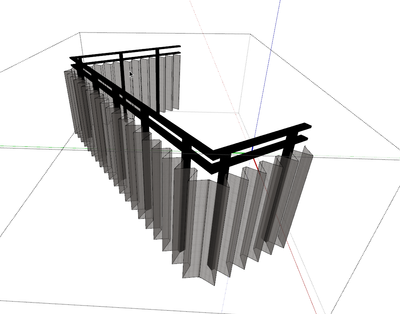

I'm trying to create a custom rail/balustrade system in Revit which looks a little something like this:


I can get something close:


But not quite... The logic seems to be that I need two balustrade types with their own spacing requirements but for the life of me I can't figure it out. Please help pivot my thinking. @RDAOU, I'm looking at you...



Thank you.

Beschriftungen (5)
5 ANTWORTEN 5
Nachricht 2 von 6
barthbradley
als Antwort auf: TAZ-ZA

where are you struggling?



Custom Railing 1.png



Custom Railing 2.png





Nachricht 3 von 6
barthbradley
als Antwort auf: TAZ-ZA

Is this the problem? Wrapping around corners?



Custom Railing 4.png

Create a Custom Post that has both a Post and Baluster Geometry in it.

Nachricht 4 von 6
TAZ-ZA
als Antwort auf: TAZ-ZA

There are two elements - the triangle fold and the straight baluster.



I can't work out how to get the straight baluster to show behind the folded baluster. Meaning, I don't know how to implement both elements to create the rail I want.




I noticed you've done it in the post I marked as a solution.



Is your solution to create a custom baluster which has both in already?


Thanks.

Nachricht 5 von 6
ToanDN
als Antwort auf: TAZ-ZA

There are several ways:



  1.  If your distance between posts are fixed then model the posts as a post family and the folded balustrade as a baluster panel family.

  2. If you distance between posts varies:
    1. Sketch the railing as multiple segments instead of a continuous line and utilize start/corner/end post.  Use balusters for the folded balustrade.
    2. Sketch the railing normally.  Use a handrail support family for the posts and balusters for the folded balustrade.



Nachricht 6 von 6
barthbradley
als Antwort auf: TAZ-ZA

Rail Wavvy2.png

Rail Wavvy3.png

Rail Wavvy4.png
