Create a Kerb using Adaptive component

6 ANTWORTEN 6
Antworten
Nachricht 1 von 7
valentinKQT6B
580 Aufrufe, 6 Antworten

Create a Kerb using Adaptive component

Hi all,



I have search through the forum and i couldn't see any answer to my issue.

I am trying to create a kerb following a road (which varies in height and in width).

Just so you know i have tried modelling that kerb with various solution(fascia, slab edge and in place component) but with always an issue making the end result not usable.

My issue here is to make an extrusion of a profile to follow a path. but i need to have my beginning and end profile to follow the global Z(exactly like a fascia or a vertical roof edge).

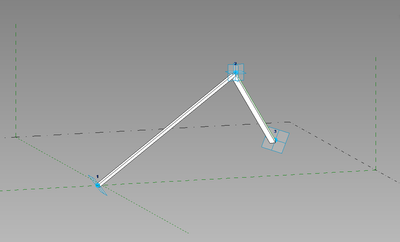

see below a screenshot of what i got up to but i can't get those profile to follow global Z. Any idea on how to do that?

Annotation 2020-05-25 163858.png

Regards,



Valentin Akdim

6 ANTWORTEN 6
Nachricht 2 von 7
barthbradley
als Antwort auf: valentinKQT6B

Are you talking about this?



Global Z.png

Nachricht 3 von 7
valentinKQT6B
als Antwort auf: barthbradley

Hi @barthbradley ,

no all three adaptive point are already with that settings. 

Annotation 2020-05-26 091645.png

regards,

Nachricht 4 von 7
ToanDN
als Antwort auf: valentinKQT6B

Set the profile adaptive family to always vertical.
Nachricht 5 von 7
valentinKQT6B
als Antwort auf: ToanDN

Hi @ToanDN  thanks for the reply.

It helps to keep the starting profile vertical but the profile rotates for an unknown reason after the second points. And the end profile is not vertical anymore:

Annotation 2020-05-26 093518.png

point 3: 

Annotation 2020-05-26 093504.png

Annotation 2020-05-26 093543.png



Regards,



Nachricht 6 von 7
RDAOU
als Antwort auf: valentinKQT6B

Nest the profile and keep in mind where you host the profile matters ("on the nodes of a divided curve" isn't similar to "on a point hosted on a curve"

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 7 von 7
valentinKQT6B
als Antwort auf: RDAOU

Hi @RDAOU ,



I am not sure i understand what you are saying about "nest the profile" Could you explain a little more about that? As for the host placement issue i understand and appreciate your advice. For curved area, i am using in place component with a swept bend(using a profile family).

To explain further my case: i have an angle between two line meeting each-other both having a different slop.
