Create a family that cuts a floor

6 ANTWORTEN 6
Antworten
Nachricht 1 von 7
roquealfonso
3055 Aufrufe, 6 Antworten

Create a family that cuts a floor

I need to model elements that are embedded inside the floor/slab, but these elements must cut or create a void in the slab/floor. I can't use the shaft option, because I need to also make a count of these elements. I have attached pictures of the floor plan and section.







6 ANTWORTEN 6
Nachricht 2 von 7
Mark.Ackerley
als Antwort auf: roquealfonso

Hi,



You've got a few options, but the key things are...



1. Make a void in the family

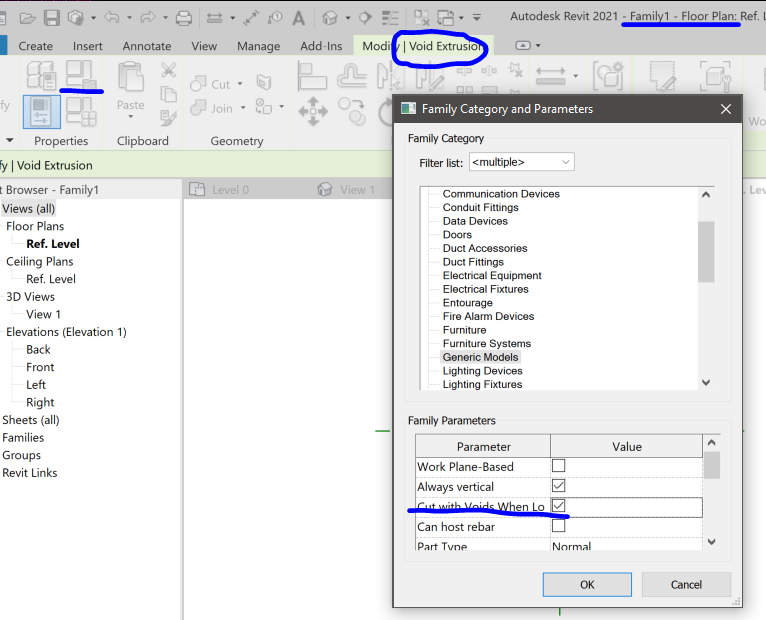

2. In the family, open 'Family Category & Parameters' (the folder icon on the create toolbar) & make the family cut with voids.

3.When you've loaded the family, 'Cut' the family from the floor (click the floor, then the family)



I've added a gif to walk you through, under the images.



Hope that helps,



Mark










Nachricht 3 von 7

I do not understand what do you want exactly to achieve...

  • is this just a Waffle slab?
  • or a Waffle with some missing cells?

Image 1.png

  • or just a Waffle without the slab  ?

Image 2.png



Constantin Stroescu

EESignature

Nachricht 4 von 7

A waffle slap, like your first image.

Nachricht 5 von 7

then , use a double Beam System under the Floor Slab and use Join to make a single entity with the slab

Constantin Stroescu

EESignature

Nachricht 6 von 7
Nachricht 7 von 7
sajede.najafi
als Antwort auf: Mark.Ackerley

thanks
