Counter family not sectioning properly

5 ANTWORTEN 5
GELÖST
Antworten
Nachricht 1 von 6
jessem5CN9L
401 Aufrufe, 5 Antworten

Counter family not sectioning properly

So here's a fun one for you.

I have a counter-top family that does not want to section properly. When we section it (either in a project or in the family file itself), it shows up as a big solid block verses the L space we'd expect to see with the counter and the raising backsplash.

There's no hidden voids or anything. I've uploaded the family on this post so others can poke around in it. But I'm just not sure why it's not sectioning properly.




Beschriftungen (3)
5 ANTWORTEN 5
Nachricht 2 von 6
imankassab2015
als Antwort auf: jessem5CN9L

https://youtu.be/1GMoThwiiaQ?si=8Cv6eMSE1KiHOwXn

Check out cut in view parameter to work with you in edit family

Check out the video by Autodesk

Accept my answer if it helps you

Nachricht 3 von 6
jessem5CN9L
als Antwort auf: imankassab2015

Good video! Unfortunately, we're using 2022 with this project, which doesn't have that option the video explains.

Nachricht 4 von 6
imankassab2015
als Antwort auf: jessem5CN9L

Change the family category from furniture category to generic model category in order to be cuttable by section in 2022

Accept my answer if it helps you

Nachricht 5 von 6
barthbradley
als Antwort auf: jessem5CN9L

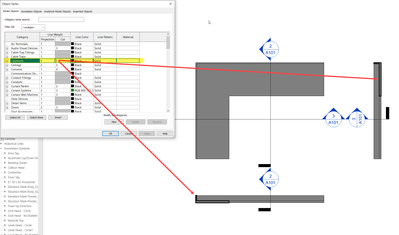

The Family isn't Cuttable, as mentioned.  "Cuttable" means that the Family will use the Cut Line Weights at the Cutting Plane.



Your Furniture Family in Project:






Your Furniture Family recategorized as Casework Family:








Nachricht 6 von 6
jessem5CN9L
als Antwort auf: jessem5CN9L

That was it! As soon as I changed the countertop to Casework instead of Furniture, it allowed it to be cuttable. Such an easy solution; I'm banging my head for how much time I wasted on it.
