Coordination Model not showing in any views

[Joe_Hughes]

Hi,

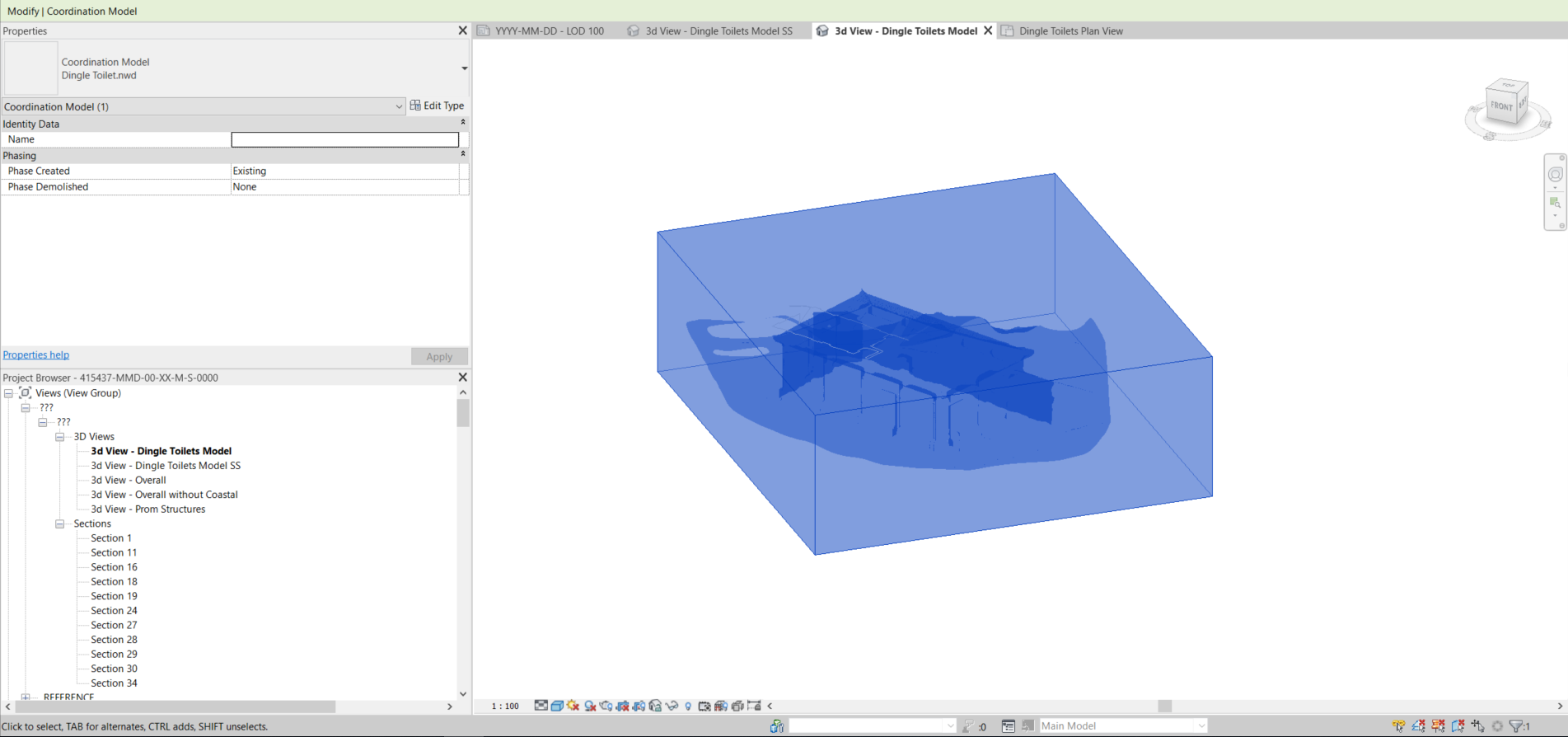

I've brought a ".nwd" file into my Revit project via "Coordination Model" however it is invisible. The ".nwd" is there because I can see it when I select around it; see attached screen capture for reference.

I've checked visibility / graphics settings and ensured  "Show model categories in this view" in "Model Categories" tab is checked, and the model in the "Coordination Models" tab is checked. I've also checked the "phasing".

Any help appreciated.

Thanks.

[Lance.Coffey]

Hello @Joe_Hughes, thank you for the question!

There are a large number of items that could block the visibility of the Coordination Model.

As described in this help topic Common Issues with Visibility and Graphic Display can you test this with a new project (create new project, using a default template, load the Coordination Model, and confirm if it shows up)?

[ennujozlagam]

have you try to install latest updates from autodesk and see if helps. thanks

[Joe_Hughes · Accepted solution]

@ennujozlagam @Lance.Coffey

Hi both, thanks for your suggestions. I've corrected the problem by changing the Visual Style to "consistent colours" or "realistic".

Thanks,

Joe
