Convex curved roof help. Is it possible

Hi all,

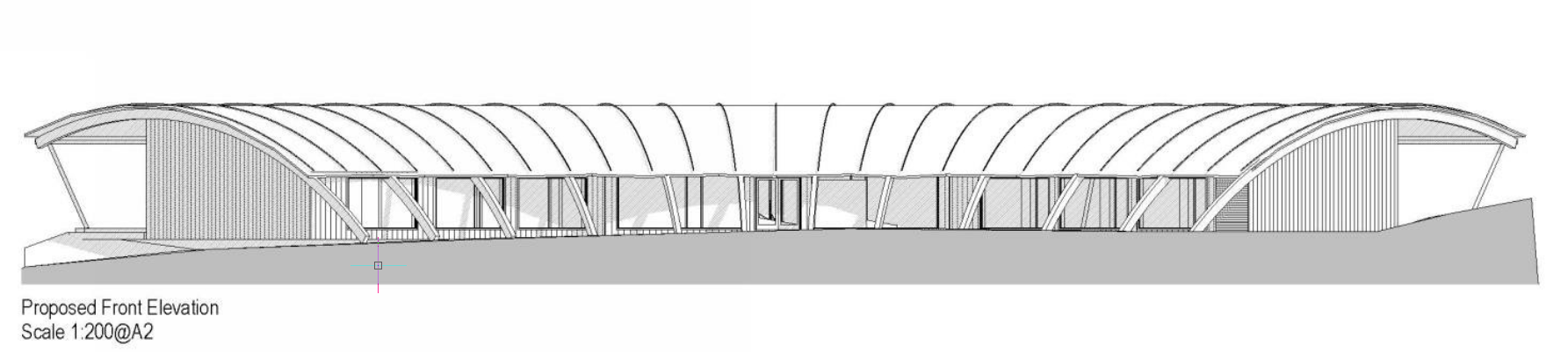

Before I embark on many hours of pain. Is the attached roof design possible in REVIT without dynamo?



Thanks in advance.

4 ANTWORTEN 4
Nachricht 2 von 5
Revit_Whisperer
als Antwort auf: stuart

Yes, as an in place family...I used a sweep for the roof and an extrusion for the standing seam which was them mirrored to other places along the roof.roof elevation.pngRoof.png

Nachricht 3 von 5
ToanDN
als Antwort auf: stuart

- Create a mass: draw a curve for for the sweep path and a curve for the roof profile then create form

- Divide the form surface and set UV to match your standing seam spacing

- Create a roof by face by picking the mass form surface

- Place structural framing by picking the divided surface lines for standing seams

Nachricht 4 von 5
stuart
als Antwort auf: Revit_Whisperer

Thanks for this.

Nachricht 5 von 5
stuart
als Antwort auf: ToanDN

Thanks, Toan DN. You're always coming up with the goods! Have a good weekend.
