connections, edges too perfect for my kind or architecture

Hello
I am working with the local architecture of an area which is based on stone, and i wanted to know if there is a way to make connections les straight and perfect, create uneven edges, etc to give the feeling of hand built house and not a perfect concrete or whatever other material structure.

Thank you
Best Regards
Rami Khedira

14 ANTWORTEN 14
Nachricht 2 von 15
GTisRuleX
als Antwort auf: Anonymous

Depending on how you modelled it, I'd apply this thru a material to my wall surfaces.  You can create any .JPG for a texture you want and apply it as a surface material to the wall.

Nachricht 3 von 15
GTisRuleX
als Antwort auf: GTisRuleX




I just took a screenshot of the .jpg you posted and applied it as a material.  You'll have to mess with image scaling, etc to get the image perfect, but this just took a few seconds to apply.

Nachricht 4 von 15
Anonymous
als Antwort auf: GTisRuleX

Hello!,
thanks for your time,
But what i mean is then when you connect 2 walls together the edge is perfectly drawn as a line which isn't realistic in the case of my architecture here... and that is what i want to change.
To not have such neat edges to create a more hand made feeling... don't know if my explanation is being clear, but le me know it it's not.

Thanks again,
Best Regards
Rami khedira

Nachricht 5 von 15
GTisRuleX
als Antwort auf: Anonymous

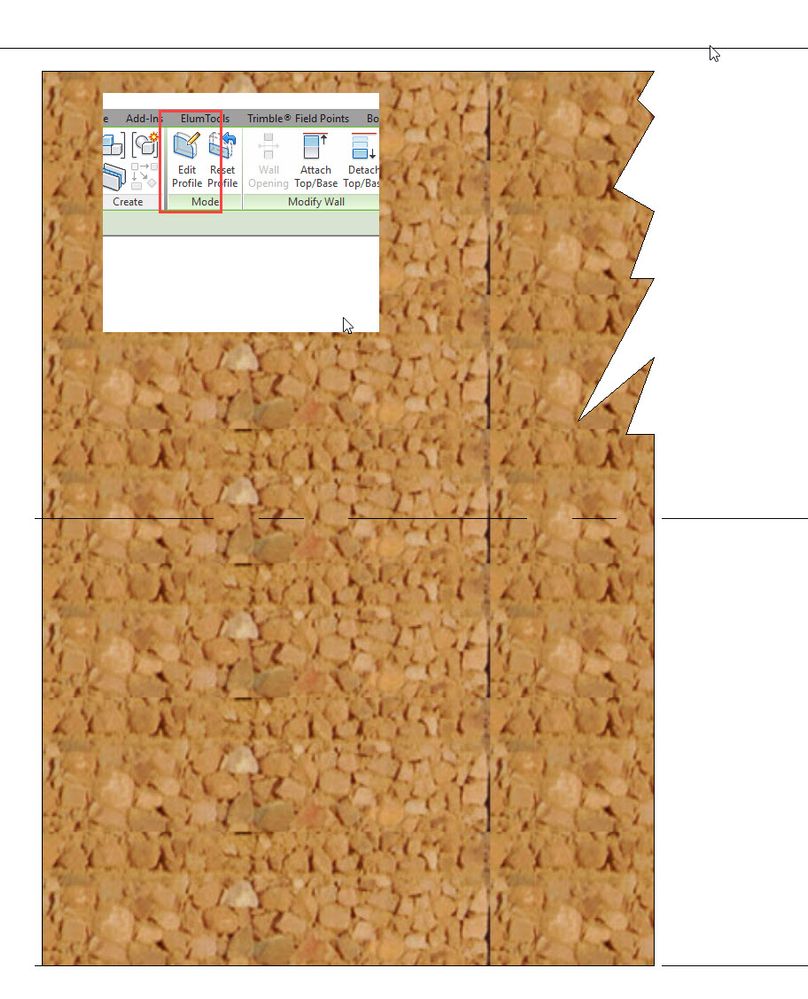

Ahh I get what you mean now... You can edit a wall edge from a section or elevation view using 'Edit Profile" with the wall selected.  This will put the wall into 'sketch' mode and you can draw whatever edges you want.  I just hacked some teeth into this wall, but you could take the time to trace out the stone edges and make it really cool.




Nachricht 6 von 15
Anonymous
als Antwort auf: Anonymous


@Anonymous wrote:

Hello
I am working with the local architecture of an area which is based on stone, and i wanted to know if there is a way to make connections les straight and perfect, create uneven edges, etc to give the feeling of hand built house and not a perfect concrete or whatever other material structure.

Thank you
Best Regards
Rami Khedira


You might want to check out conceptual masses along with the material suggestions in other posts.

Nachricht 7 von 15
Anonymous
als Antwort auf: GTisRuleX

Ahh yeah forgot about that one!
Will try it,
But my concern would be then do i need to edit every single wall to obtain that or is there a way i could do it in mass or something?
Thank you

Nachricht 8 von 15
GTisRuleX
als Antwort auf: Anonymous

I've seen some Dynamo scripts people have built that generate rubble walls by creating random shaped "stones" and applying them along a given path and height, but I have no idea how you'd do that without pushing into Dynamo.  I don't have much experience playing with Masses since I work for construction companies.  Every thing we need is, for the most part, rigidly designed.



Very interesting topic, definitely subscribing to watch further ideas!

Nachricht 9 von 15
Anonymous
als Antwort auf: Anonymous

ok thank you will check and see if that would be helpfull @jason

Nachricht 10 von 15
ToanDN
als Antwort auf: Anonymous

Displacement map 3ds max.

Procedural bump mapping in 3ds max.







I am not sure if Revit has this functionality.

Nachricht 11 von 15
Anonymous
als Antwort auf: GTisRuleX

Ah ok yeah i don't know anything about dynamo but i'll try and see with the rest of info you gave that is pretty helpful!
Thanks a lot!
have a good day.
 @GTisRuleX

Nachricht 12 von 15
GTisRuleX
als Antwort auf: Anonymous

Just for fun I tried applying the material as a bump map as well with "Speckle" at 100.  The surface looks more real, but it doesn't to justice on the edges.  I think the issue stems from the wall material doesn't wrap around the edges, as the surface looks 'bumpy' from a 3D view in 'realistic'




Nachricht 13 von 15
GTisRuleX
als Antwort auf: GTisRuleX

Getting closer with "Exterior Wraps", but still not the effect I'd want in this scenario.


Nachricht 14 von 15
GTisRuleX
als Antwort auf: GTisRuleX

Switching to Raytracing was a HUGE improvement.  Starting to think the bump map is ignored in "Realistic".


Nachricht 15 von 15
loboarch
als Antwort auf: GTisRuleX


@GTisRuleX wrote:

Starting to think the bump map is ignored in "Realistic".




Fairly sure that is true. The procedural effects (bump map) are not applied in a realistic view. It takes a true "render" to develop that effect. The raytrace visual style is a true render.
