Concptual mass - visibility issue in Floor Plan

5 ANTWORTEN 5
GELÖST
Antworten
Nachricht 1 von 6
cramanayaka
1072 Aufrufe, 5 Antworten

Concptual mass - visibility issue in Floor Plan

Hi there, Using conceptual mass, I created this solid form (I am an engineer and not familiar with conceptual massing much but learning a bit now as a hobby) and locked in the top surface to Level 2 (see image below).


When I go to Level 2 under ‘Floor Plans’, I cannot see the top surface.




However, it is shown in Level 2 under ‘Structural Plans’.


I happened to think that Floor Plans look down but I may be wrong.

I checked visibility settings also.

Anyone could assist me on explaining this issue please?



Thanks Chamil

5 ANTWORTEN 5
Nachricht 2 von 6
ennujozlagam
als Antwort auf: cramanayaka

go to your properties and change setting of your underlay and see if helps. thanks








Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 3 von 6
RDAOU
als Antwort auf: cramanayaka

@cramanayaka



That is due to the different View Range settings of structural plans.

  1. In architectural plans, the Offset for "Primary Range Bottom" and the "View Depth" are usually set to 0, to see only what is on the current level
  2. In structural plans they are set to -ve value in order to see the structural elements(columns/beams...) below the slab of the current level

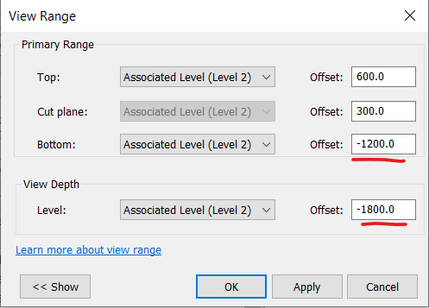

View Range in Structural Plans would look somewhat similar to the below:



struct vr.png



View Range in Architectural Plans would look somewhat similar to the below:



Architectural vr.png








YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 4 von 6
cramanayaka
als Antwort auf: ennujozlagam

Thank you very much for your kindness; it works. I much appreciate the quote you sent also.

Regards
Chamil

Nachricht 5 von 6
cramanayaka
als Antwort auf: RDAOU

Thank you very much for taking time to explain it with a great clarity; it works.

Regards
Chamil

Nachricht 6 von 6
Anonymous
als Antwort auf: cramanayaka

I'm trying to understand why if the mass is aligned to the Floor Roof- when I go to the Roof Floor plan

I'm not able to see it. As you can see I'm in the family environment.
