Complex roof Structure

14 ANTWORTEN 14
GELÖST
Antworten
Nachricht 1 von 15
apocalip
1538 Aufrufe, 14 Antworten

Complex roof Structure

Hey!



please be kind with me, i'm extremely new with Revit and currently working on a Model for an old House of mine. I do have years of experience in Fusion360 for Hobby Projects, but Revit is quite new for me (less than a Week).



I have a bit of a complex Roof which i struggle to replicate in Revit. There is a normal pointed roof and a second Building which is rotated by 90 degree, a bit lower and offset by half the building length.

Here's a Photo of that Building and the Roof section which i struggle with:






I already managed to get this far by creating the 2 roofs Seperately and then joining them and attaching the Walls to the roofs:




My current Problem is, that i'm clueless how to remove the Roof beneath the other roof. I already googled for quite a bit but can't seem to find a way/solution to achieve this. I suspect it kind of needs to be done with a cut or trim?



Here's the Revit file of my current state: https://www.dropbox.com/s/vchd6qgegyhagzi/Fachwerkhaus.rvt?dl=0



Would be great if someone could give me a hint or show me how to create that Roof properly,...

Thanks!



Cheers Marc

14 ANTWORTEN 14
Nachricht 2 von 15
barthbradley
als Antwort auf: apocalip

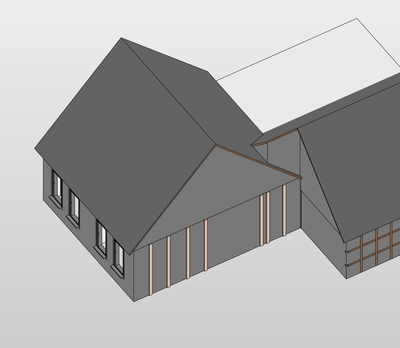

Is this what your are trying to do?




Nachricht 3 von 15
apocalip
als Antwort auf: barthbradley

yea, that looks almost correct. Is the roof behind that Wall open as well?



Nachricht 4 von 15
apocalip
als Antwort auf: apocalip

I have a 3D Scan from Canvas, that was converted into Sketchup, which shows in 3D how it should be:



https://canvas.io/viewer/dwuRj73Y

Nachricht 5 von 15
barthbradley
als Antwort auf: apocalip

Okay, so this?




Nachricht 6 von 15
apocalip
als Antwort auf: barthbradley

Yes! How did you do it :grinsendes_Gesicht:

Nachricht 7 von 15
barthbradley
als Antwort auf: apocalip

see if attached RVT helps...

Nachricht 8 von 15
apocalip
als Antwort auf: barthbradley

well, you did close the Wall, but what i'm actually struggling with is connection/opening the Roofs on the Inside. I want the part of the Left roof, that is "under" the right roof to be gone, so there is a passage from the one attic to the other.




Nachricht 9 von 15
barthbradley
als Antwort auf: apocalip

Cut away part of the roof sketch then.



B-Roof 3.png

Nachricht 10 von 15
mauricio_mssf
als Antwort auf: apocalip

Take a look at this GIF I made to help another person with a similar doubt.



TELHADO .gif

 To your roof follow the steps

Edit Footprint.png

Select the roof and Edit Footprint


Edit Footprint 2.png

1 - Select pick lines

2 - Select the exterior side os the roof 

Edit Footprint 3.png

3 - Select the line you created and uncheck the slope definition
4 - select Trim tool
5 - with Trim tool activated cut the lines to join in red

6 - with trim activated cut the lines to join in green
7 - Finish editing mode

Join both roofs





If the answer solves your problem, click Accept as Solution this helps other users to quickly find an answer and let a like if you liked it.



Você achou esta postagem útil? Sinta-se à vontade para curtir esta postagem.
Ficou satisfeito com a resposta à sua pergunta? Nesse caso, clique no botão ACEITAR SOLUÇÃO.


 Mauricio Santos Filho Arquiteto | BIM Manager
EESignature

Nachricht 11 von 15
barthbradley
als Antwort auf: apocalip

B-Roof 5.png

Nachricht 12 von 15
apocalip
als Antwort auf: barthbradley

perfect, thank you!

Nachricht 13 von 15
barthbradley
als Antwort auf: apocalip


@apocalip wrote:

perfect, thank you!




Solution credit would be nice payment for services rendered.

Nachricht 14 von 15
apocalip
als Antwort auf: barthbradley

i did click on "Accept solution" of your Tutorial answer, or do i need to do something else?

Sorry, first question in this forum, so i don't now the etiquette yet.



Cheers Marc

Nachricht 15 von 15
barthbradley
als Antwort auf: apocalip

You have two different members helping you. Click on one of my posts and accept it as a solution. You can give out as many solution credits as you like.
