Chain link fabric gate family

I have a gate with chain link fabric. Gate is a family. But I can't get anything inside the family environment to represent the transparent chain link(arrow pointed) in shade mode or hidden line mode. For now the chain link is a view specific override. Thanks for look up.




12 ANTWORTEN 12
Nachricht 2 von 13
syman2000
als Antwort auf: linkboy

Have you check out the material and type in the word chain?











Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 3 von 13
barthbradley
als Antwort auf: linkboy

Like this?






No Transparency:




Nachricht 4 von 13
linkboy
als Antwort auf: syman2000

This is nice in realistic mode. I try to use it for CD as part of the elevation. Elevation is hidden line mode or shaded mode. Unless I miss something here, the chain link material wont show transparent in either hidden line mode or shaded mode. Below is the image I applied fence material to a extrusion block in the door family. One shows "correctly" as see-thru one is blocked.









Nachricht 5 von 13
barthbradley
als Antwort auf: linkboy

Did you see my post?

Nachricht 6 von 13
linkboy
als Antwort auf: barthbradley

Adjustment is view specific. Other people working on their view happen to have the gate, unless they overwrite the element property. The gate is going to be block component behind. If this can be incorporated into one family, no special setting /tweak needed for view specific.

Nachricht 7 von 13
barthbradley
als Antwort auf: linkboy

Creating a Rule-Based Filter and adding it to the View is not an option?



Chain Link 11.png

Chain Link 12.png



...the other option would be to MODEL the Chain Link.  Yes, I know: seriously ridiculous.

Nachricht 8 von 13
ToanDN
als Antwort auf: linkboy

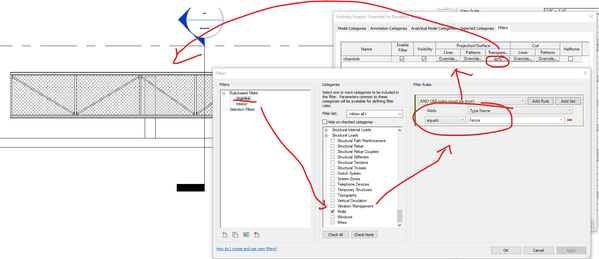

Create a view filter for it.




or use a 3D elevation instead.






Nachricht 9 von 13
linkboy
als Antwort auf: barthbradley

yes, I saw your response.  Thanks ! Adjustment made for element is view specific. Looking for something can be done in family level, so no need making change for each view.

Nachricht 10 von 13
barthbradley
als Antwort auf: linkboy


@linkboy wrote:

yes, I saw your response.  Thanks ! Adjustment made for element is view specific. Looking for something can be done in family level, so no need making change for each view.




Model it then. Maybe with a Curtain Wall.

Nachricht 11 von 13
linkboy
als Antwort auf: ToanDN

I tried that. Only issue is I have to send message to other team members (they are off-site) to ask them load filter and apply it. if they forgot to do it, their view is getting something blocked. thanks for chip in.




Nachricht 12 von 13
ToanDN
als Antwort auf: linkboy


@linkboy wrote:

I tried that. Only issue is I have to send message to other team members (they are off-site) to ask them load filter and apply it. if they forgot to do it, their view is getting something blocked. thanks for chip in.






Add the filter to all elevation/section view templates.

Nachricht 13 von 13
syman2000
als Antwort auf: linkboy

If you want to built into the family, you may want add a shared family nested into the gate.






There in the filter, you can set the family to display as transparent








Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
