Certain levels are not an option for an underlay

16 ANTWORTEN 16
Antworten
Nachricht 1 von 17
ashleyb
2390 Aufrufe, 16 Antworten

Certain levels are not an option for an underlay

I am working on a project where I have structural plans (walls plans) and floor plans (joists plans). I am trying to underlay the wall plan below so I can line up my studs from level to level.

These structural plan levels are labelled as 01A-1st floor walls, 02A-2nd floor walls etc. My floor plans are labelled as 01-1st floor, 02-2nd floor etc.

As you can see in the attached when I try to choose an underlay level the wall levels are not an option to choose. They used to show up and now for some reason they are not there and I can not figure out why. I have compared settings with other projects and they all seem to be the same.

16 ANTWORTEN 16
Nachricht 2 von 17
barthbradley
als Antwort auf: ashleyb

Are they Duplicate View of the same Level?

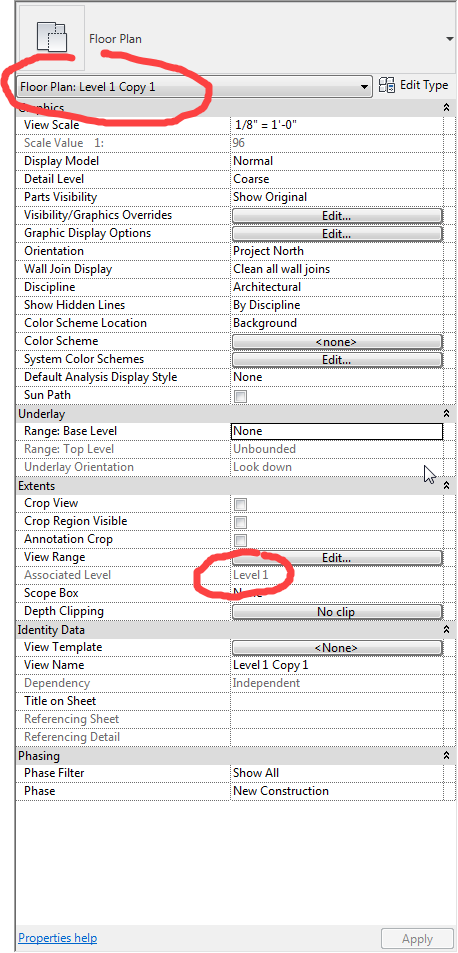

Dup Level.png

Nachricht 3 von 17
ashleyb
als Antwort auf: barthbradley

No, all of the levels were created new. I duplicated the plans as a dependant but never duplicated the levels.
Nachricht 4 von 17
barthbradley
als Antwort auf: ashleyb

When you go to View=>Plan View=>Floor Plan=>uncheck do not duplicate view,  you see all those levels you are speaking about?



...What does their Properties say is the Associated Level?

Nachricht 5 von 17
ashleyb
als Antwort auf: barthbradley

Yes, I can see all of those levels in there.
Nachricht 6 von 17
JasonKunkel
als Antwort auf: ashleyb

Do you have plan views for the levels that are not showing up in the Underlay dropdown? Levels with no associated plans cannot be underlayed.


Jason Kunkel
Senior Practice Manager, Architecture and Engineering
CADD Microsystems Blog
RVIT Blog | Twitter | LinkedIn
Nachricht 7 von 17
barthbradley
als Antwort auf: ashleyb


@ashleyb wrote:
Yes, I can see all of those levels in there.



....and the Associated Level?

Nachricht 8 von 17
Anonymous
als Antwort auf: ashleyb

Ya know that Floor Plan Names are not Levels right?  They are created based on the level...

Else we would have a giant mess of levels to try to filter out on the elevations.



Sounds like you just need to temporarily turn on certain categories in your view and change the overlay.

Nachricht 9 von 17
ashleyb
als Antwort auf: JasonKunkel

I do have plan views for all of these levels.
Nachricht 10 von 17
ashleyb
als Antwort auf: barthbradley

I can see the Associated levels in there.
Nachricht 11 von 17
cbcarch
als Antwort auf: ashleyb

-Try setting the View Template to None.

-Also, check Discipline of the Structural Plan Views--default is Structural, perhaps try changing to Architectural or Coordination.

- Check View Range of the Struct. Views to make sure cut plane/view depth is set correctly so underlay of lower level/level below could be visible.

Cliff B. Collins
Registered Architect The Lamar Johnson Collaborative Architects-St. Louis, MO
Nachricht 12 von 17
davidneo1988
als Antwort auf: barthbradley

yes they are in my case. what does this mean?
Nachricht 13 von 17
ToanDN
als Antwort auf: davidneo1988


@davidneo1988 wrote:
yes they are in my case. what does this mean?

What are "they"?  What is "this"?

Nachricht 14 von 17
davidneo1988
als Antwort auf: ToanDN

I was replying to barth. He sent a photo that concludes my situation. I would like to know the fix for this. My underlay range is unavailable and my view plan is duplicated but not dependent. Any thoughts?
Nachricht 15 von 17
ToanDN
als Antwort auf: davidneo1988


@davidneo1988 wrote:
I was replying to barth. He sent a photo that concludes my situation. I would like to know the fix for this. My underlay range is unavailable and my view plan is duplicated but not dependent. Any thoughts?

Only levels with plan views can be shown as Underlay.  If you only added the levels, then go ahead and create plan views associated with those levels.

Nachricht 16 von 17
davidneo1988
als Antwort auf: ToanDN

apparently this was just another revit fluke. decided randomly to come back
.
Nachricht 17 von 17
RDAOU
als Antwort auf: davidneo1988


@davidneo1988 wrote:
apparently this was just another revit fluke. decided randomly to come back
.

Nope no flukes there...Just Underlay rules.



  1. For a Level Datum to be available as an underlay, it must have at least ONE plan view
  2. What becomes available on the Underlay drop down menu is the Level Datum itself (ie: Not the plan views created for that Level/Building Story)
  3. If for instance a Level has 100 floor plan views (ie: duplicate views), it would still be listed as ONE single LEVEL on the Underlay drop down menu (ie: Not 100 floor plans)
