CASEWORK family visibility issue

5 ANTWORTEN 5
GELÖST
Antworten
Nachricht 1 von 6
arsham
546 Aufrufe, 5 Antworten

CASEWORK family visibility issue

hi,

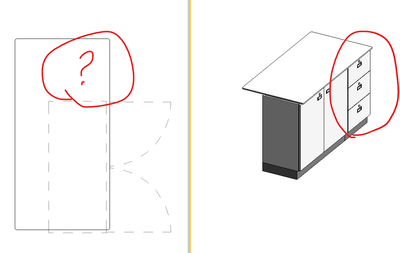

i have 2 casewrok families that have some model elements in them that are visible on Coarse and Medium and i have a 2d detail family in each of them that is only fisible on Fine plan view. i also have a masking field region to show where the boundary of casework is below the counter top, which is set to show in Coarse and Medium only. in one family i can see that, in the other one, i can not. does anyone know why?




5 ANTWORTEN 5
Nachricht 2 von 6
barthbradley
als Antwort auf: arsham

Post the Family.



Question: have you compared the Visibility Settings of the Symbolic Linework in the "good" family with the Visibility Settings of the Linework in the "bad" Family.  Sounds like you may have.  If so, is Draw in Foreground checked in the Properties of the Symbolic Linework?



Nachricht 3 von 6
arsham
als Antwort auf: barthbradley

please see attached



yes to both questions...

Nachricht 4 von 6
barthbradley
als Antwort auf: arsham

Use the ol' Invisible Model Line Trick.



Edit Base Cab Family, go to Elevation and draw an <Invisible Line> Model Line vertically from the "top" Ref. Plane upwards a few feet.



 Invisible ML.png



Invisible ML2.png





Nachricht 5 von 6
arsham
als Antwort auf: arsham

you made me laugh so freaking hard man! thats an amazing way to fix it, so stupid at the same time.... thank you



but can you guess why it wouldnt show?

Nachricht 6 von 6
barthbradley
als Antwort auf: arsham


@arsham wrote:

you made me laugh so freaking hard man! thats an amazing way to fix it, so stupid at the same time.... thank you



but can you guess why it wouldnt show?




Actually, it wasn't a joke. There is such a thing as the ol' Invisible Model Line Trick.  You'll even find Autodesk Revit Help Articles that link you to it.



https://revitoped.blogspot.com/2008/01/aaaahthe-old-invisible-line-trick-eh-99.html
