Cant apply material to dwg. file imported from Rhino

21 ANTWORTEN 21
GELÖST
Antworten
Nachricht 1 von 22
NAUMES
4519 Aufrufe, 21 Antworten

Cant apply material to dwg. file imported from Rhino

I imported a Rhino6 file into Revit as a dwg file by linking a CAD file, however, I cant apply materials to it I can apply materials through the object styles manager, but nothing happens its still the default material.

If I import the same file by components>model in place>link CAD file, then I am able to add a materials parameter to it, but same issue where nothing changes after applying the material.



Anyone know a solution for this?

Beschriftungen (4)
21 ANTWORTEN 21
Nachricht 2 von 22
joe_keogh
als Antwort auf: NAUMES

Hi @NAUMES

Could you possibly upload the Rhino file in your reply, or even a portion of it?  Also please make sure that each material in the rhino model is associated with a unique layer, i.e. Trunk, foliage, grass.  Cheers

Joe Keogh
Director | Design Technology + Innovation
www.viewlistic.com.au

Nachricht 3 von 22
NAUMES
als Antwort auf: joe_keogh

Hi, @joe_keogh ,

I've attached the dwg file where my topography was imported from. I would upload the original Rhino file but I cannot upload 3dm. files. I did not assign a material to the model in Rhino since I am rendering through revit/enscape. I will upload my revit file as well in another reply.

Thank you

Nachricht 4 von 22
NAUMES
als Antwort auf: joe_keogh

Nachricht 5 von 22
barthbradley
als Antwort auf: NAUMES

Make your DWG elements BYLAYER.

Nachricht 6 von 22
NAUMES
als Antwort auf: barthbradley

@barthbradley

How do I do this? Is this something I should do within Rhino?

Nachricht 7 von 22
barthbradley
als Antwort auf: NAUMES




Does this help?

Nachricht 8 von 22
syman2000
als Antwort auf: NAUMES

First when you link it in, click on the VV and object style. Then click on the material and replace the asset. Result is you will get the grass material.



material.pngreplace material.pngreult.png



Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 9 von 22
syman2000
als Antwort auf: syman2000

material number.pngThe forum is acting up again. I replace this render material 38-0-0. You can change to by layer in CAD so the grass will read correctly. If there is an override in AutoCAD layer, you have to track which material that apply to that.

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 10 von 22
NAUMES
als Antwort auf: barthbradley

Thank you! this fixed it :leicht_lächelndes_Gesicht:

Nachricht 11 von 22
Anonymous
als Antwort auf: NAUMES

@barthbradley I feel like I am trying to do the same thing but something is off. I need to insert drawings from an online 3D model library, this company offers free conversions but doesn't have Revit. I only have Rhino5 and Revit. I want to apply materials to a few different areas. When I opened it in Rhino the layers are great! I down size the file and polysurfaces and import as a dwg. but then theres no mass?

trying to assign material.PNG

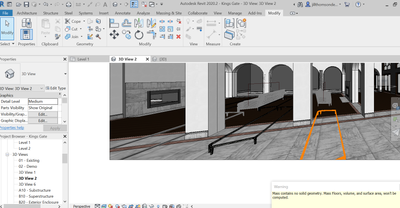

Assign materials to couch and frame.PNG

What am I missing?

Nachricht 12 von 22
Anonymous
als Antwort auf: syman2000

I can't seem to separate the materials and assign them individually or they stay gray. I seem to be missing a link. I am importing files from turbosquid and converting from rhino to dwg, saving as family, changing materials. I have tried to import small pieces, change colors. Please help :benommenes_Gesicht:





  


Nachricht 13 von 22
syman2000
als Antwort auf: Anonymous

Upload the file so we can take a look.

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 14 von 22
Anonymous
als Antwort auf: syman2000

Thanks so much!!

Nachricht 15 von 22
syman2000
als Antwort auf: Anonymous

I looked at the CAD. It seems like there is no mesh. Also since the object is set to one layer, you might as well create layers and place the object in the layer. Revit will only split material base on layers.



no mesh.png

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 16 von 22
Anonymous
als Antwort auf: syman2000

is there a video to explain this? I don't have CAD, just Revit and Rhino5. I have a few versions of the sofa, some with meshes on pillows. What I dont understand is how to divide them. Looking at the render you can see I have the chair as one, sofa as one and pillows in another material. I just dont know how I did that exactly and how I can make sure I do it correctly



Nachricht 17 von 22
syman2000
als Antwort auf: Anonymous

Just upload the Rhino file

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 18 von 22
Anonymous
als Antwort auf: syman2000

it won't let me attach the 3dm Rhino file, this is a zip file of one of the chairs. When I open each file in Rhino I export the selected layer and change the color of the layer, convert into a dwg and open it in revit. Apply the material per your advise in the thread before. Repeat for each. I just don't understand why I can't separate the two on some pieces, frame and sofa the same but pillows different.

Nachricht 19 von 22
Anonymous
als Antwort auf: Anonymous

does this help?

Nachricht 20 von 22
Anonymous
als Antwort auf: Anonymous

hope this explains it better
