Can't assign 2% slope to the roof

17 ANTWORTEN 17
Antworten
Nachricht 1 von 18
Anonymous
889 Aufrufe, 17 Antworten

Can't assign 2% slope to the roof

Hello Friends,



I can't assign a 2% (1.15°) slope to the attached roof. Does anyone know why and how to fix that? Thanks

17 ANTWORTEN 17
Nachricht 2 von 18
constantin.stroescu
als Antwort auf: Anonymous

I don't have this problem

  • Look at the Project  Units settings
  • and maybe to Snap

Image 18.png

Constantin Stroescu

EESignature

Nachricht 3 von 18
Anonymous
als Antwort auf: constantin.stroescu

Have you assigned 2% to all lines?

Nachricht 4 von 18
barthbradley
als Antwort auf: Anonymous




Try 5% in sketch mode, finish and close, and then select the roof and change 5% to 2%.

Nachricht 5 von 18
constantin.stroescu
als Antwort auf: Anonymous

it looks that your roof is too thick for this slope. If you make it thinner it will work..

Image 19.png

Constantin Stroescu

EESignature

Nachricht 6 von 18
Anonymous
als Antwort auf: barthbradley

Have you tried this?

Nachricht 7 von 18
barthbradley
als Antwort auf: Anonymous


Nachricht 8 von 18
barthbradley
als Antwort auf: Anonymous


@Anonymous wrote:

Have you tried this?




Yeah. Revit didn't like it.  I put in 5%, finished out of Sketch Mode  and changed the whole Roof to 2% under its Properties.

Nachricht 9 von 18
Anonymous
als Antwort auf: constantin.stroescu

It is 6.5" which is our standard. I can't make it thinner.

Nachricht 10 von 18
Anonymous
als Antwort auf: barthbradley

This would be great, can you share a video of how you do it. I can't

Nachricht 11 von 18
constantin.stroescu
als Antwort auf: Anonymous

I can suggest you are trick to overcome it...

  • Make a Roof ,for instance at half width of the desired thickness, or split the Layers
  • Copy this Roof to Clipboard and then Paste Aligned to Same Place
  • Move the Copy upwards and Align the bottom with the Top of original roof

Image 21.png

Constantin Stroescu

EESignature

Nachricht 12 von 18
barthbradley
als Antwort auf: Anonymous


@Anonymous wrote:

This would be great, can you share a video of how you do it. I can't

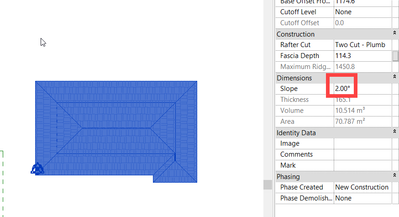

Just select the Roof and change the value for "Slope" under its Properties -- like is shown in my screenshot above.

Nachricht 13 von 18
ToanDN
als Antwort auf: barthbradley

2% ain't 2 degrees.
Nachricht 14 von 18
barthbradley
als Antwort auf: Anonymous

I see you are using 2009. I was testing your file with 2020. Maybe 2009 can't do it. Dunno. I'd just go was @constantin.stroescu 's suggestion.

Nachricht 15 von 18
barthbradley
als Antwort auf: ToanDN

...





Nachricht 16 von 18
barthbradley
als Antwort auf: ToanDN

...

Nachricht 17 von 18
ToanDN
als Antwort auf: Anonymous

Here is the one that uses the original roof type.  For this type of slope, I would assume the structure be flat and only the insulation/roofing be sloped.




Nachricht 18 von 18
barthbradley
als Antwort auf: Anonymous

Never mind @Anonymous.  I was testing using your Project/Roof units.  Never occurred to me to verify the units.
