Best way to model gypsium wall with metal stud and rockwall in between

6 ANTWORTEN 6
Antworten
Nachricht 1 von 7
redlion120
409 Aufrufe, 6 Antworten

Best way to model gypsium wall with metal stud and rockwall in between

Which Best way to model gypsium wall with metal stud and rockwall



1_ change the solid panel with type of wall after making this type of wall with same material



2_making curtain panel family and insert it in type of curtain wall

6 ANTWORTEN 6
Nachricht 2 von 7
barthbradley
als Antwort auf: redlion120

Wall Best Way.png

Wall Best Way 2.png

Wall Best Way 3.png

Nachricht 3 von 7
redlion120
als Antwort auf: barthbradley

Thank you for your reply but i want to model gypsium wall to Lod 400 I Think curtain wall will be used to make profile of stud appear
Nachricht 4 von 7
barthbradley
als Antwort auf: redlion120


@redlion120 wrote:
Thank you for your reply but i want to model gypsium wall to Lod 400 I Think curtain wall will be used to make profile of stud appear



Curtain Walls and Beam Systems  - along with Basic Walls and Parts.  It's not an either/or.  There's plenty of tutorials/videos out there on the web. Google them.



...are you modeling king studs, jack studs, trimmers, cripples, headers, spacers, blocking, etc., etc.?  How about the insulation blankets between the studs?

Nachricht 5 von 7
ToanDN
als Antwort auf: redlion120

Using curtain for framing inside basic wall may get you there but it will take a lot of time for non typical conditions. If you need to do LOD 400 on a daily basis the get a light steel framing add-on for Revit such as AGACad or Steel smart.

Nachricht 6 von 7
barthbradley
als Antwort auf: redlion120

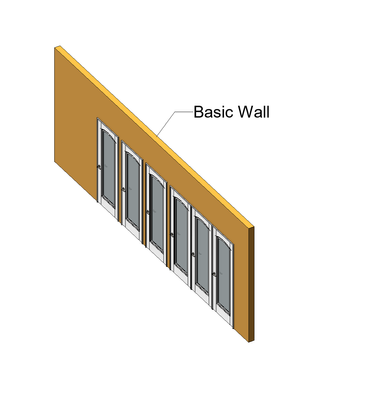

Framing a Wall1.png

Framing a Wall2.png

Nachricht 7 von 7
handjonathan
als Antwort auf: redlion120

Hi @redlion120

Thanks a lot for posting your question to the forums!   Have the solutions suggested by @ToanDN @barthbradley helped with your issue?

We look forward to hearing back from you with more information so we can help you as a community! 



Jonathan Hand


Industry Community Manager | AEC (Architecture & Building)
