Backwards casework family preview in Properties

Sahay_R
Mentor

Backwards casework family preview in Properties

Sahay_R
Mentor
Mentor

I have just finished developing a whole bunch of casework families. Now when I insert them into a test Project, the preview in the Properties dialog is BACKWARDS!






I have already -



1) clicked SaveAs and changed the preview thumbnail

2) clicked the View Cube to set the desired view as the Home view

3) clicked the View Cube to set my thumbnail view to front



AND THE PREVIEW STILL LOOKS THE SAME!!!



However - get this - in the Recent Files - the preview looks beautiful. Go figure.



I saw a thread in this regards that started in 2010. Don't get me wrong - I love Revit, I really do - but when it makes my lovely work look bad (yes, ALL of my new Casework families have backwards previews) I am NOT happy!


Rina Sahay
Autodesk Expert Elite
Revit Architecture Certified Professional

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
0 Likes
Reply
Accepted solutions (1)
2,155 Views
18 Replies
Replies (18)

chrisplyler
Mentor
Mentor

Totally guessing here...



Maybe the preview doesn't get refreshed every time you "Load to Project" again?



What happens if you totally purge the family from the project file and load it anew?



0 Likes

FAIR59
Advisor
Advisor

if there are no "model" changes on reload, Revit will not reload the family (and doesn't tell you either). Solution: for a random parameter type in the same value, and this will count as model change.

Sahay_R
Mentor
Mentor

@chrisplyler Purged. Reloaded. No go.



@FAIR59 - will try that when I get back into work!


Rina Sahay
Autodesk Expert Elite
Revit Architecture Certified Professional

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
0 Likes

Corsten.Au
Advisor
Advisor

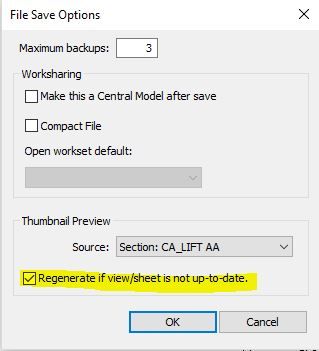

regenerate view.JPG



Will this help? while saving, tick for " Regenerate view / sheets "



Cheers!

Corsten
Building Designer
0 Likes

ToanDN
Consultant
Consultant
Isn't is a known issue? Maybe the template was created by Kevin Spacey?
0 Likes

Alfredo_Medina
Mentor
Mentor

This is another issue that has been known for years, but it doesn't get fixed.

I see an email coming soon saying that we should submit this as an idea. Smiley Wink


Alfredo Medina _________________________________________________________________ ______
Licensed Architect (Florida) | Freelance Instructor | Profile on Linkedin

Sahay_R
Mentor
Mentor

@Alfredo_Medina says idea, @Alfredo_Medina gets an idea.



Vote here -

https://forums.autodesk.com/t5/revit-ideas/backwards-casework-family-preview-in-properties/idi-p/752...




Rina Sahay
Autodesk Expert Elite
Revit Architecture Certified Professional

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
0 Likes

Sahay_R
Mentor
Mentor

@FAIR59 - tried that too, no go.

Smiley Frustrated


Rina Sahay
Autodesk Expert Elite
Revit Architecture Certified Professional

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
0 Likes

chrisplyler
Mentor
Mentor

Okay, so what happens when you rotate all the geometry around 180-deg right in the family?

0 Likes

Sahay_R
Mentor
Mentor

@chrisplyler Did it. Also told the view cube that Front is Back. Set it as Home View. No go. Preview in folder looks awesome. Preview in Properties looks aweless. Ripping my hair out here.


Rina Sahay
Autodesk Expert Elite
Revit Architecture Certified Professional

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
0 Likes

ToanDN
Consultant
Consultant

@rsahayUZMK9 wrote:

Ripping my hair out here.


Why waste thy energy over a known issue?




0 Likes

Sahay_R
Mentor
Mentor

....or mine hair.

Very true. Leaving the hair alone as I type....


Rina Sahay
Autodesk Expert Elite
Revit Architecture Certified Professional

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
0 Likes

Sahay_R
Mentor
Mentor
Accepted solution

The only thing that I have found that works for me is to flip the geometry in the family so that Front points Up.

For longer lasting results - create a custom Casework template. Open the OOTB Casework template,  flip the reference planes so that Front points Up, save as a family, and then change the extension from RFA to RFT.


Rina Sahay
Autodesk Expert Elite
Revit Architecture Certified Professional

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
0 Likes

antonjubani
Enthusiast
Enthusiast

Dear Autodesk how is this issue solved?

So you suggest that solution is to model families backwards so that they appear correctly in the family type browser??



That is certainly not the right solution.



Please fix the template or tell us a workaround until this is done.

Sahay_R
Mentor
Mentor

See the second part of the solution. Create a custom template.


Rina Sahay
Autodesk Expert Elite
Revit Architecture Certified Professional

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.

ca
Observer
Observer

Hi.



Is this still not fixed "Backwards casework family preview in Properties"

0 Likes

ca
Observer
Observer

Hi.



Is this still not fixed "Backwards casework family preview in Properties"

0 Likes

wilhelm.schnell
Observer
Observer

Hallo, das ist sowas von nervig, und die vorgeschlagene Lösung ist inakzeptabel. Seit Jahren wird die Vorschau falsch dargestellt, obwohl man die Familie mit der Vorschau richtig anzeigt

0 Likes
