Array keeps going in the wrong direction

17 ANTWORTEN 17
Antworten
Nachricht 1 von 18
ZDCMapp
793 Aufrufe, 17 Antworten

Array keeps going in the wrong direction

Hello,

I am trying to array an object and it keeps going in the wrong direction. I want it to array to the right but it keeps going to the left. I have no clue why it keeps doing this. I've tried it on the floor plan and the elevation.



Process:

1) Pick object, array, set options to linear, Number: 5, Move to: Last

2) Pick objects midpoint, Pick reference line which is to the right and it arrays in the wrong direction.



The array is correct but going in the wrong direction. Makes no sense.

17 ANTWORTEN 17
Nachricht 2 von 18
ToanDN
als Antwort auf: ZDCMapp

Go to Architecture tab > click Set Work Plane on ribbon > what is the active Work Plane that you see?

Nachricht 3 von 18
ZDCMapp
als Antwort auf: ToanDN

None.

Nachricht 4 von 18
ToanDN
als Antwort auf: ZDCMapp


@ZDCMapp wrote:

None.


Can you show a screenshot?  It should be something, not None.







Nachricht 5 von 18

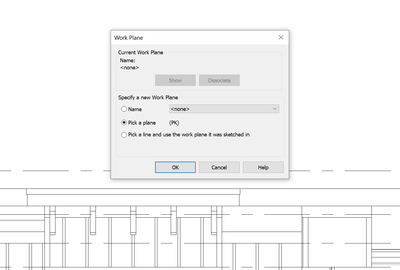

ZDCMapp
als Antwort auf: ToanDN




Nachricht 6 von 18
ToanDN
als Antwort auf: ZDCMapp

Is it an elevation?  What about a floor plan?

Nachricht 7 von 18
ZDCMapp
als Antwort auf: ToanDN

Yes, elevation on that view. Floor Plan says Truss Bearing

Nachricht 8 von 18
ToanDN
als Antwort auf: ZDCMapp


@ZDCMapp wrote:

Yes, elevation on that view. Floor Plan says Truss Bearing


Okay change the active work plane for the floor plan to the Level of that floor plan view then do the array again.

Nachricht 9 von 18
ZDCMapp
als Antwort auf: ZDCMapp

However, I'm on the Level 5 floor plan that says Truss Bearing

Nachricht 10 von 18
ZDCMapp
als Antwort auf: ZDCMapp

Stand by...

Nachricht 11 von 18
ZDCMapp
als Antwort auf: ZDCMapp

It's not giving me an option to pick Level 5.

Nachricht 12 von 18
ToanDN
als Antwort auf: ZDCMapp


@ZDCMapp wrote:

It's not giving me an option to pick Level 5.


Are you sure you get the the Work Plan dialog by go to Architecture or Structure tab and click Set button?  Do not select any element when you do the above.  This is to access the View's work plane, not the element's work plane.










Nachricht 13 von 18
ZDCMapp
als Antwort auf: ToanDN

That's where I am at. The drop down doesn't give me an option for Level 5.






Nachricht 14 von 18
ToanDN
als Antwort auf: ZDCMapp

It appears Truss Bearing is indeed a Level, so your view's work plane is good.  I am not sure what else causes the issue without looking at the file.

Nachricht 15 von 18
ZDCMapp
als Antwort auf: ToanDN

Yea, I don't know. I opened one of my training files from my course and retried the array exercise and it worked just fine. I would like to continue this conversation Monday if you don't mind. I will send drawing file over Monday. Thanks for you help.



I was trying to array the corbels on my parapet. I already put them in but I still would like to figure out why it wasn't arraying correctly.






Nachricht 16 von 18
barthbradley
als Antwort auf: ZDCMapp

Are you working with tiled views?   Sounds to me like you are just misreading what you are seeing.  Been there; done that.  Coincidently, always on a Friday too.   :zwinkerndes_Gesicht:

Nachricht 17 von 18
ZDCMapp
als Antwort auf: ToanDN

Nachricht 18 von 18
ryley.g.h
als Antwort auf: ZDCMapp

Try and do the Array in a plan, 3D view? Make sure you hit the "top" button on the cube in the top right corner of the 3D view so you're in a perfect plan view.
