Angled Walls - material and elements orientation (angle)

3 ANTWORTEN 3
GELÖST
Antworten
Nachricht 1 von 4
Anonymous
839 Aufrufe, 3 Antworten

Angled Walls - material and elements orientation (angle)



Screen Shot 2016-10-22 at 12.02.22 PM.png



Hi everyone,



Could you explain me how can I change materials and elements orientation on angled walls?

Tags (1)
3 ANTWORTEN 3
Nachricht 2 von 4
constantin.stroescu
als Antwort auf: Anonymous

I suppose the Pattern applied to the Wall is Model Pattern . Then , it can be rotated and Aligned with the Borders or with other References....



Image 3.png



Constantin Stroescu

EESignature

Nachricht 3 von 4
Anonymous
als Antwort auf: constantin.stroescu

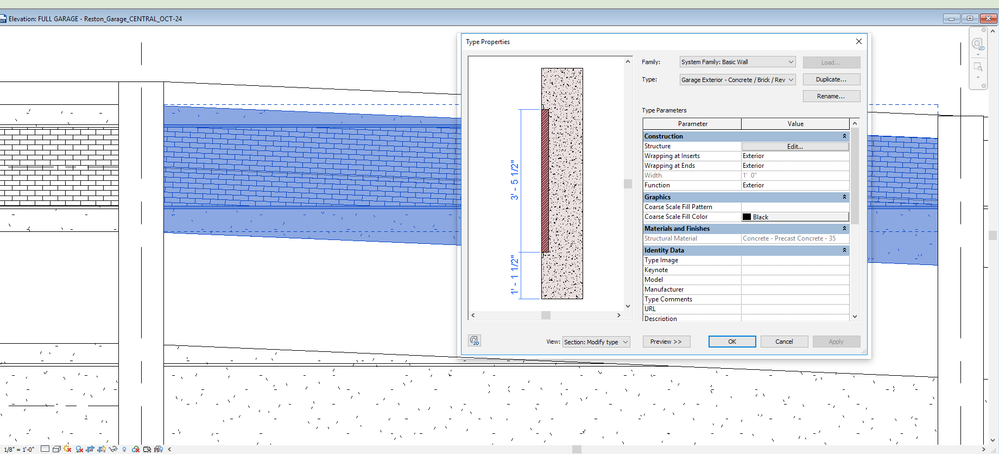

Thank you very much! That helps me tremendously  a lot. The wall also has two reveals. How can I modify their angles? Screen Shot 2016-10-22 at 2.46.07 PM.png

Nachricht 4 von 4
constantin.stroescu
als Antwort auf: Anonymous

I'm afraid that inbuilt Sweeps/Reveal can be only Horizontal/Vertical.

But , you can do it using Voids- Components Model in Place as shown in my screencast:

Another way , could be using a Family Face Based (or Wall Based) Void with parameters..



Constantin Stroescu
