Alternatives to curtain wall mullion modelling of wall panel

1 ANTWORT 1
Antworten
Nachricht 1 von 2
rdempseyMQ92Q
157 Aufrufe, 1 Antwort

Alternatives to curtain wall mullion modelling of wall panel

Hi all,

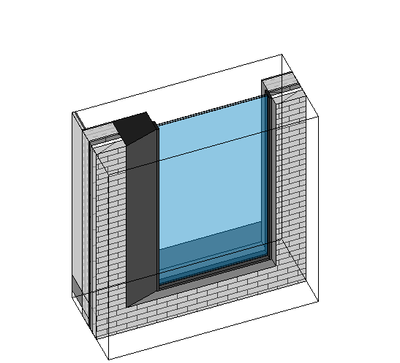

I'm currently developing a model for the below detail which includes a metal panel angled off a window jamb.


So far I've attempted using a profile from the curtain wall (our windows are curtain walls in our office) and create the extrusion from there. It's essentially a large block as I can't layer the profile to match the wall build up as I need to keep it in one loop.


To get over this, I've created a detail component which can be seen on the plan view below.


This workflow is okay if all of the angles and lengths all stay the same, however if I need to edit sizes it's a case of going into the profile then the detail component to suit. In addition all windows would need to be extended down from the sizes I have now and then change the mullion family to the new one where it is used.



Would there be any better way of doing this?



Thanks!



1 ANTWORT 1
Nachricht 2 von 2
vitorbortoncello
als Antwort auf: rdempseyMQ92Q

  • Maybe creating parameters in family to change dimensions, then you could just duplicate the profile mulion family inside the project

A resposta te ajudou? Não esqueça de curtir e aceitar como solução!


Vitor Bortoncello | Arquiteto | Especialista BIM


aAutodesk Certified Professional
