Allignament between structural beams with roof and beams at ridge on the roof

15 ANTWORTEN 15
GELÖST
Antworten
Nachricht 1 von 16
Anonymous
827 Aufrufe, 15 Antworten

Allignament between structural beams with roof and beams at ridge on the roof

Hello,



there possibility to allign beams and roof?



And manage the two beams at the ridge on the roof that overlap each others?



.rvt file is attached.



Thank's



Struct beams.jpg



Struct beams_1.jpg



15 ANTWORTEN 15
Nachricht 2 von 16
MostafaElashmawy
als Antwort auf: Anonymous

You will need to draw the beam longer then draw a reference plan and cut with it.

Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 3 von 16
Anonymous
als Antwort auf: MostafaElashmawy

@MostafaElashmawy

With which commadn cut?

With "split element" doesn't go.




Nachricht 4 von 16
Anonymous
als Antwort auf: Anonymous

Cut beam.JPG

Nachricht 5 von 16
Anonymous
als Antwort auf: Anonymous

A scrrencast, please?

Nachricht 6 von 16
MostafaElashmawy
als Antwort auf: Anonymous

Screencast uploading

Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 7 von 16
MostafaElashmawy
als Antwort auf: Anonymous



Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 8 von 16
RDAOU
als Antwort auf: Anonymous

Make sure not to delete the ref plane or you will lose that cut

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 9 von 16
Anonymous
als Antwort auf: RDAOU

@MostafaElashmawy  thank's a lot for screencats. I've confused "set work plane" with "reference plane".



But for the ridge on the roof?

I've hidden the fisrt beams and the cut.

Is the better way?



With 3D views can't cut geometry?



Thank's






Nachricht 10 von 16
RDAOU
als Antwort auf: Anonymous



You do not need a reference plane at the top the Beams join automatically...

Mirror this beam and see what happens :Gesicht_mit_Zunge:

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 11 von 16
MostafaElashmawy
als Antwort auf: Anonymous

What @RDAOU  should work for you if the right beam system is exactly similar with the left ones but as they are slightly different, you can use the cut tool to cut both the right and the lift beam by the reference plan.



cut>>1st beam>> .ref plan

cut>> 2nd beam>> .ref plan









Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 12 von 16
MostafaElashmawy
als Antwort auf: Anonymous



Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 13 von 16
Anonymous
als Antwort auf: MostafaElashmawy

@RDAOU  if i mirror I do not obtain what you have sayed




Nachricht 14 von 16
Anonymous
als Antwort auf: Anonymous

@RDAOU this is how join automatically?



I undrestand for down side mirroring. Have to mirrow also reference plan with beam system.




Nachricht 15 von 16
RDAOU
als Antwort auf: Anonymous

Build the cut in the beam family...

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 16 von 16
ToanDN
als Antwort auf: Anonymous

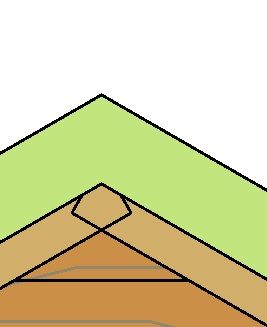

Mirror the beams and the ref planes altogether. You can group them and mirror.



Annotation 2020-01-14 094118.jpgAnnotation 2020-01-14 094131.jpgAnnotation 2020-01-14 094145.jpg
