add mullions to curvd curtain wall

10 ANTWORTEN 10
Antworten
Nachricht 1 von 11
l.yong1
507 Aufrufe, 10 Antworten

add mullions to curvd curtain wall

Hi there,

Does anyone know how to add mullions on curved curtain wall nicely?

Please see attached photo. As you could see on the picture that the mullions are not straight:neutrales_Gesicht:

Thank you




10 ANTWORTEN 10
Nachricht 2 von 11
barthbradley
als Antwort auf: l.yong1

This is the same question as you posted before.  What about my previous suggestion? 3D Beams for Mullions?



Beams for Mullions.png

Nachricht 3 von 11
l.yong1
als Antwort auf: l.yong1

Please show me by pictures. Thank you

Nachricht 4 von 11
barthbradley
als Antwort auf: l.yong1
Nachricht 5 von 11
l.yong1
als Antwort auf: l.yong1

I am sorry this is not relevant to my question. Can you please answer my question?

Nachricht 6 von 11
barthbradley
als Antwort auf: l.yong1


@l.yong1 wrote:

I am sorry this is not relevant to my question. Can you please answer my question?






I did answer. If my answer isn't on point, then you should elaborate on your question.

Nachricht 7 von 11
l.yong1
als Antwort auf: barthbradley

I want to add mullions to glazing curved wall not beams. I will understand your instructions if you can provide step by step instructions with pictures. Thank you:lächelndes_Gesicht_mit_Sonnenbrille:

Nachricht 8 von 11
barthbradley
als Antwort auf: l.yong1


@l.yong1 wrote:

I want to add mullions to glazing curved wall not beams. I will understand your instructions if you can provide step by step instructions with pictures. Thank you:lächelndes_Gesicht_mit_Sonnenbrille:


I provided a Video above. No good?



Here's the meat and potatoes of it:



1. Go to a 3D View of the curved wall.

2. Under the Structural Tab, press "Beam".

3. On the Options Bar, check the box next to "3D".

4. Press "Pick Lines" and then select a curved wall edge.



See how the Beam follows the wall edge?



Now that you know how to get an element to "nicely" follow the curvature of the curved wall, can you guess what you need to do now?  Yes! Create a "Mullion-Shaped" Beam and use that one instead.





Nachricht 9 von 11
l.yong1
als Antwort auf: l.yong1

Thanks but not working. Can't create elements.

Can you please advice how to create mullions on curved glazing walls? Use mullions rather than beams.

Thank you

Nachricht 10 von 11
barthbradley
als Antwort auf: l.yong1

Post your Revit Project that contains these "curved glazing walls" you're talking about.

Nachricht 11 von 11
RDAOU
als Antwort auf: l.yong1

@l.yong1

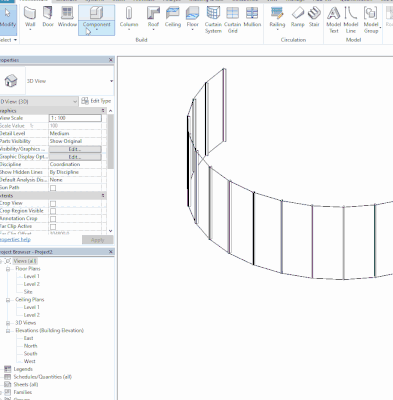

See if the below GIF helps

  • Basic Wall Glass - for the panels
  • Basic Wall Metal - for the horizontal curved mullions
  • Standard curtain wall mullions for the vertical mullions



Circular Curtain Wall 1.gif
