Add edge on mass



Hello, i have created a mass and i want to add a point in a vertex to increase its height. I attach sketch and screencast.



Help appreciated.









14 ANTWORTEN 14
Nachricht 2 von 15
dzanta
als Antwort auf: Anonymous

try placing your cursor on the peak of the roof mass and using the tab key to cycle to the selection of that point (assuming you built the mass as a pentagon profile extruded).



you should also be able to place a reference or model point via the ribbon on the vertex or on a line and then select it to use the gizmo move tool.


Dzan Ta, AEE, ASM, ACI.

EESignature



Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


Autodesk Community | Twitter | YouTube | Facebook | LinkedIn |

Win 11 Pro/DELL XPS 15 9510/i9 3.2GHz/32GB RAM/Nvidia RTX 3050Ti/1TB PCIe SSD/4K 15.4" Non-Touch Display

Nachricht 3 von 15
Anonymous
als Antwort auf: dzanta

@dzanta



Which command in the ribbon do you use to place a point in the vertex of a cube?



Once I select that vertex I see: x-ray, add edge?



Thanks!

Nachricht 4 von 15
dzanta
als Antwort auf: Anonymous

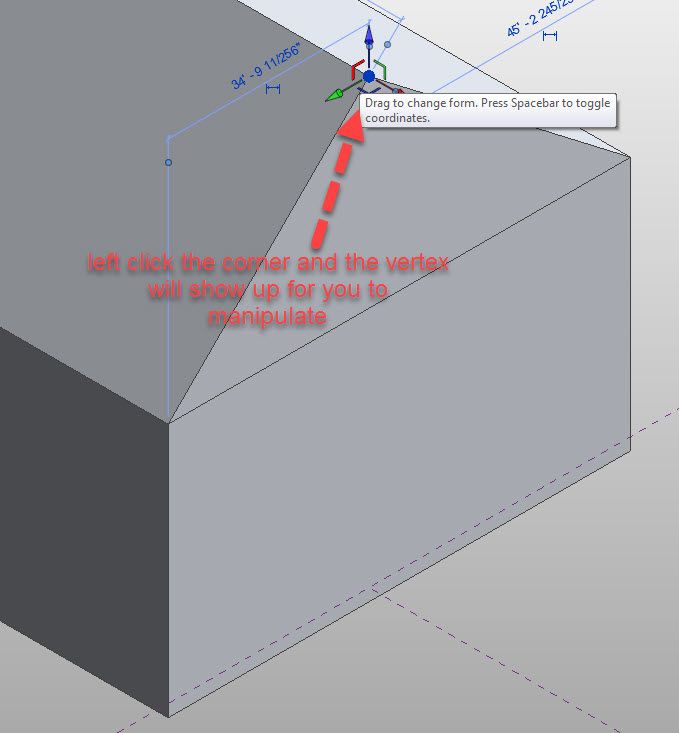

See images1.jpg2.jpg


Dzan Ta, AEE, ASM, ACI.

EESignature



Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


Autodesk Community | Twitter | YouTube | Facebook | LinkedIn |

Win 11 Pro/DELL XPS 15 9510/i9 3.2GHz/32GB RAM/Nvidia RTX 3050Ti/1TB PCIe SSD/4K 15.4" Non-Touch Display

Nachricht 5 von 15
Anonymous
als Antwort auf: dzanta

@dzanta



Thanks for your quick reply.



Seems like I don't find "Host: From Element"



I have recorded a screencast so you can see what i see :leicht_lächelndes_Gesicht:





Nachricht 6 von 15
dzanta
als Antwort auf: Anonymous

Your screencast looks like you are in the Project environment within a revit project and you are trying to display an elevation of your project but the elevation shows nothing.



I am not sure if this is the right screencast you are trying to post.



The issue regarding massing and creating points on a mass to manipulate the mass shape is performed either in the Conceptual Massing Environment with a mass family open or within the Project Environment only when a mass object is selected and edited in place.






Dzan Ta, AEE, ASM, ACI.

EESignature



Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


Autodesk Community | Twitter | YouTube | Facebook | LinkedIn |

Win 11 Pro/DELL XPS 15 9510/i9 3.2GHz/32GB RAM/Nvidia RTX 3050Ti/1TB PCIe SSD/4K 15.4" Non-Touch Display

Nachricht 7 von 15
Anonymous
als Antwort auf: dzanta

@dzanta



the correct screencast:





Nachricht 8 von 15
dzanta
als Antwort auf: Anonymous

so the way in which you created the original mass object (rectangular extrusion), ends up making your modification process a bit difficult.  The easiest way to do what you want is to delete the original rectangular mass object and then create it again using a profile shaped as a pentagon (vertical placement) and then extrude this profile to the length of the building.  This will allow you to manipulate the edges and vertices of the mass object for better control as well as updating the revit objects based on the mass object.


Dzan Ta, AEE, ASM, ACI.

EESignature



Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


Autodesk Community | Twitter | YouTube | Facebook | LinkedIn |

Win 11 Pro/DELL XPS 15 9510/i9 3.2GHz/32GB RAM/Nvidia RTX 3050Ti/1TB PCIe SSD/4K 15.4" Non-Touch Display

Nachricht 9 von 15
Anonymous
als Antwort auf: dzanta

@dzanta



I didn't know it was that difficult thing to do..



I have created quite many mass-extrusions, deleting them all, not good..



Thanks

Nachricht 10 von 15
dzanta
als Antwort auf: Anonymous

you can try to add an edge to the vertical face which will give you a reference point that is part of the form so you can grip manipulate the shape...




Dzan Ta, AEE, ASM, ACI.

EESignature



Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


Autodesk Community | Twitter | YouTube | Facebook | LinkedIn |

Win 11 Pro/DELL XPS 15 9510/i9 3.2GHz/32GB RAM/Nvidia RTX 3050Ti/1TB PCIe SSD/4K 15.4" Non-Touch Display

Nachricht 11 von 15
Alfredo_Medina
als Antwort auf: Anonymous


@Anonymous wrote:



Hello, i have created a mass and i want to add a point in a vertex to increase its height. I attach sketch and screencast.







@Anonymous Please see this similar thread:



https://forums.autodesk.com/t5/revit-architecture-forum/in-place-massing-pitched-roof/m-p/6513219/highlight/true#M124482


Alfredo Medina _________________________________________________________________ ______
Licensed Architect (Florida) | Freelance Instructor | Profile on Linkedin
Nachricht 12 von 15
Anonymous
als Antwort auf: Alfredo_Medina

@Alfredo_Medina



Thanks for your link. What I am trying to bring up here is that you can only add an edge perpendicular to your plane. See my screencast, there is one face which I ma not able to do that..





Nachricht 13 von 15
Alfredo_Medina
als Antwort auf: Anonymous

The Add-Profile feature is limited to only the sides of the form that were created from the extrusion, not the faces that are the same as the shape that you used to create the form. If you want something on top of that box, you can add a sketch in that plane, the vertical plane, and extrude it. Or start the form from the vertical plane, not the horizontal, or do a skeleton of reference lines instead, etc.


Alfredo Medina _________________________________________________________________ ______
Licensed Architect (Florida) | Freelance Instructor | Profile on Linkedin
Nachricht 14 von 15
Anonymous
als Antwort auf: Alfredo_Medina

Hi Alfredo,



I know it is a long time since this comment but i just came across this problem now, could you please explain what do you mean by " If you want something on top of that box, you can add a sketch in that plane, the vertical plane, and extrude it." ?



many thanks

k

Nachricht 15 von 15
ToanDN
als Antwort auf: Anonymous
