About constraint dimension direction control

6 ANTWORTEN 6
GELÖST
Antworten
Nachricht 1 von 7
rockymeng88JYY
340 Aufrufe, 6 Antworten

About constraint dimension direction control

i create 4 ref plan and make 3 constraint dimensions between them, if i change the constraint dimensions value , the right side 4 stayed still , while  ref plan 1 2 3 will move left, but if  ref plan 1 locked, any change to constraint  B or C would cause an error .

how to control the direction of constraint dimension?




6 ANTWORTEN 6
Nachricht 2 von 7
curtisridenour
als Antwort auf: rockymeng88JYY

dimension from a strong reference to a weak reference. make sure reference plane one is pinned down. dimensions from that reference plane to the right.



Nachricht 3 von 7
curtisridenour
als Antwort auf: rockymeng88JYY


Nachricht 4 von 7
ToanDN
als Antwort auf: rockymeng88JYY

Make sure only ONE out of the four ref planes is pinned, and none of the parameters (A, B, C) are locked.

Nachricht 5 von 7
rockymeng88JYY
als Antwort auf: curtisridenour

the attachment is the test file




if the bottom ref plan is locked, and  global parameter C  can't be changed.



Nachricht 6 von 7
RDAOU
als Antwort auf: rockymeng88JYY

@rockymeng88JYY



Behavior of reference planes in the Project environment is not the same as in Family environment



I am not sure why you need such global parameters (we rarely use them for labeling Dimensions - and mostly to label parameters ) but you might want to consider a different approach ... such as



Option A: A guide Family

  1. building that relationship in a family
  2. and then using the pick line tool, you can snap objects/families to the reference planes from the Guide Family

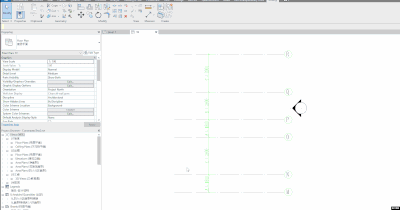

Option B - Use Grids instead of Reference Planes (See GIF below - PS: You can create a new type without the bubble)



Global Parameters_Grids.gif

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 7 von 7
rockymeng88JYY
als Antwort auf: RDAOU

thanks a lot. plant b is what i want

i wanna create a house include many "rectangle" rooms  , the length and width of the rooms can be changed with global parameters . something like parametric house.

At first, i try to lock the wall to ref plan,  but some error  occur,as u can see the questions above .
