A stair with different Steps

18 ANTWORTEN 18
GELÖST
Antworten
Nachricht 1 von 19
TomasoCardia
2453 Aufrufe, 18 Antworten

A stair with different Steps

Hi all!

I'm tring to build this type of stair (image 01,02).

Is there a way to build it as one stair (with different steps)? How ?

Thank you!01.JPG02.JPG

18 ANTWORTEN 18
Nachricht 2 von 19
barthbradley
als Antwort auf: TomasoCardia

Paint tool? Looks like you just want to change the tread surface material.

Nachricht 3 von 19
TomasoCardia
als Antwort auf: barthbradley

on the second image are two different steps

Nachricht 4 von 19
barthbradley
als Antwort auf: TomasoCardia

Looks like two different stair types then. Do it that way; one stair type without stringers on top of another stair type with stringers.  No?

Nachricht 5 von 19
loboarch
als Antwort auf: TomasoCardia

You will never get it with one stair. Looks like 2 stair types to me. 1 "regular" stair and one that is deep like seats.



Jeff Hanson
Principal Content Experience Designer
Revit Help |
Nachricht 6 von 19
TomasoCardia
als Antwort auf: loboarch


going ahead to this way, altough I think is it incredible that there is not other way to do this real common stair..

Thank you for your helps

Nachricht 7 von 19
ToanDN
als Antwort auf: TomasoCardia

Below is what I would do.  A big stair and smaller steps as pieces of floor.


Nachricht 8 von 19
barthbradley
als Antwort auf: TomasoCardia

If Section "Corte A-A" is accurate, I would say that this stair design is not "common".   Just saying.  I think doing it as two stairs is closer to the way it will get constructed in the field.



...actually, I take that back. I like @ToanDN's approach. That's how I'd roll....or "step". Nice job though, @TomasoCardia

Nachricht 9 von 19
ToanDN
als Antwort auf: TomasoCardia


Nachricht 10 von 19
TomasoCardia
als Antwort auf: ToanDN

ok :leicht_lächelndes_Gesicht: How did you built it?

Nachricht 11 von 19
barthbradley
als Antwort auf: ToanDN

...reminds me of head-rolling day.   Smiley (zwinkernd)

Nachricht 12 von 19
ToanDN
als Antwort auf: TomasoCardia

See my post above it. I was trying to add the final image to it but wasn't allowed so I had to create a new reply.
Nachricht 13 von 19
Corsten.Au
als Antwort auf: TomasoCardia

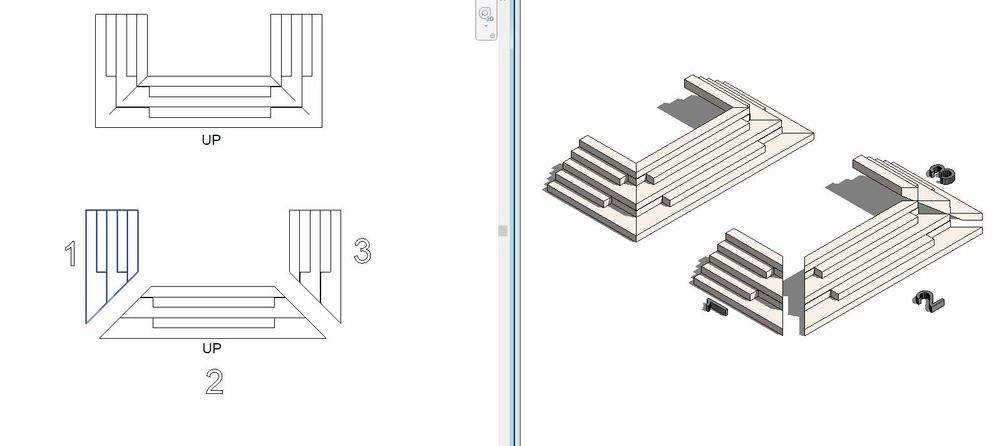

Split Stairs in 3 parts..Split Stairs in 3 parts..

All the risers should touch two Boundaries, that constraints the way stairs are modelled..

check this if that helps..

https://www.dropbox.com/sh/xviskk5nvjuiv9c/AAAwSn7cbPLtFLF3-wMpv8iAa?dl=0

Corsten
Building Designer
Nachricht 14 von 19
TomasoCardia
als Antwort auf: ToanDN

The problem in this solution is that if you want to measure the right m3 of concrete you need, for example, you cannot (or you can do it but not the in the right way - the construction system are different)

Nachricht 15 von 19
TomasoCardia
als Antwort auf: Corsten.Au

Really brilliant solution!

Thank you very much

Nachricht 16 von 19
TomasoCardia
als Antwort auf: TomasoCardia


Done!

Thank you to all!

Nachricht 17 von 19
Anonymous
als Antwort auf: Corsten.Au

Thank you! but I can't download the attachment, could you explain how to build it?

Nachricht 18 von 19
Anonymous
als Antwort auf: ToanDN

Hi ! How to build it? Thank you!

Nachricht 19 von 19
barthbradley
als Antwort auf: Anonymous

Start a new tread @Anonymous .
