600x600 50% & 30% Staggered Pattern

4 ANTWORTEN 4
GELÖST
Antworten
Nachricht 1 von 5
arjay_ecoNX9RS
285 Aufrufe, 4 Antworten

600x600 50% & 30% Staggered Pattern

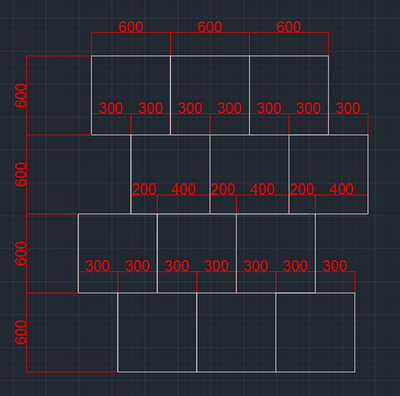

Hi, anyone able to help me create a textnote /.pat file for pattern. refer to below screenshot.



Thank you in advance.




Beschriftungen (1)
4 ANTWORTEN 4
Nachricht 2 von 5
EdMilbourn
als Antwort auf: arjay_ecoNX9RS

I have found this video helpful in the past:



https://youtu.be/XEZDJc7gNeY?si=akq4VxLzYn_xKGjy

Nachricht 3 von 5
Pattycake_Kyle
als Antwort auf: arjay_ecoNX9RS

@arjay_ecoNX9RS Here you go, download for free: https://pattycake.io/pat/X0rlnoO546W



If you did want to write your own and learn how to do that without the use of a program; you can follow this tutorial here to understand the numbers better: [PAT From Scratch Intro Tutorial]



Pattycake ScreenshotPattycake Screenshot



Happy Pattern Making :lächelndes_Gesicht_mit_Sonnenbrille:

www.pattycake.io
Web based & real time .PAT creator. The largest collection of free PAT files! Over 700+ Pat files ready to download
No plugins or add-ins to install, and Revit compliant!
Nachricht 4 von 5
azad.Nanva
als Antwort auf: arjay_ecoNX9RS

do you need something like this :






If it solves your problem, please click Accept to enhance the Forum.
Nachricht 5 von 5
arjay_ecoNX9RS
als Antwort auf: Pattycake_Kyle

Thank you, Guys, it helps a lot.
